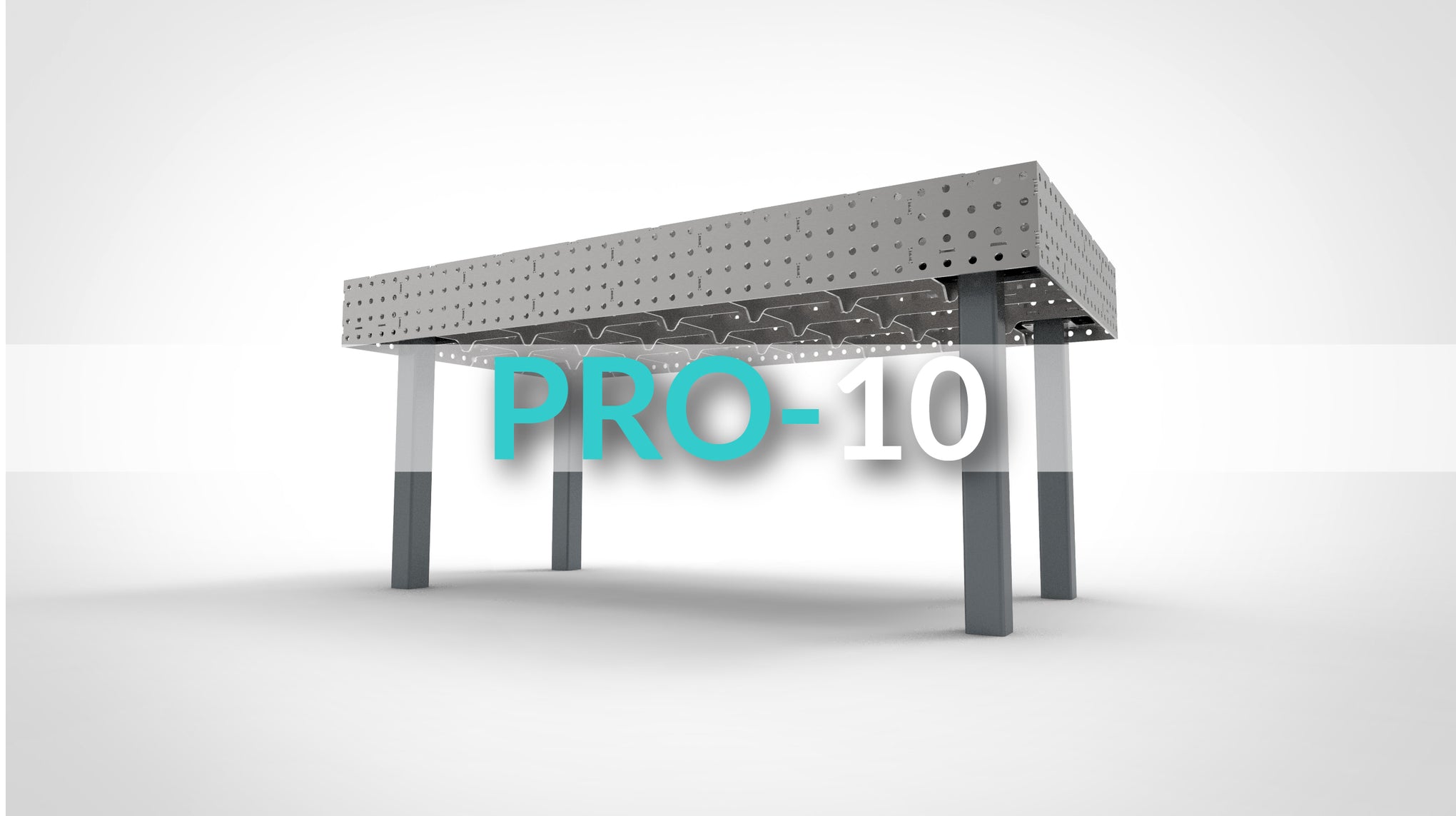

MAC - PRO -10 - Modular Fixture Weld Welding Table

£1,980.00 £1,650.00 VAT excl.

"Absolute game changer!! Wish I bought one years ago!

Sam Armer

Verified buyer

Our PRO-10 tables are the ultimate professional modular welding table fixture system. These tables are designed inhouse using the tab and slot locking interface. All PRO tables have a 200mm rib sub-frame offering maximum strength and accuracy. The PRO-10 is supplied with a material thickness of 10mm. If you do require a thicker material please check our PRO-6 or PRO-8 ranges.



Unlike other imports and cheaper constructions, we design superior sub-frame cross bracing as this is the most critical part of the fixture table to ensure a truly flat and accurate fabrication surface. We design, test and manufacture everything in house and the UK to maintain a high quality of control.



As standard all of our tables and tool includes the industry standard 16mm hole pattern (50mm hole centres) to work with all industry fixture 16D tooling.



If you cant find the size or product your after? Please get it touch as we offer bespoke sizes and designs to suit your requirements. Contact Us



We only use Hot Rolled, Pickled and Oiled S275 structural mild steel. What this means is just after the production the sheet steel is run through an acid bath (Pickling) to remove any impurities, rust and mill scale from the surfaces of the steel. This leaves the sheet raw and unprotected so a light coving of oil is used to protect it. Using HRPO is nicer for our fibre laser cutter as the laser doesn’t need to cut through mill scale and impurities which can and eventually affect the accuracy of the laser cutter therefore using HPRO Steel gives you precision cut parts which in our opinion they looks more awesome than the dreaded mill scale.



We can also offer our tables with either full thread tapped top  or half 16mm and half thread tapped. These holes can either be tapped by us or we can laser the holes for yourself to tap. Contact us for a quotation.



Have you seen our tables with painted legs? Want the same?  We offer 2k Painted Legs any RAL! Contact us for a quotation.

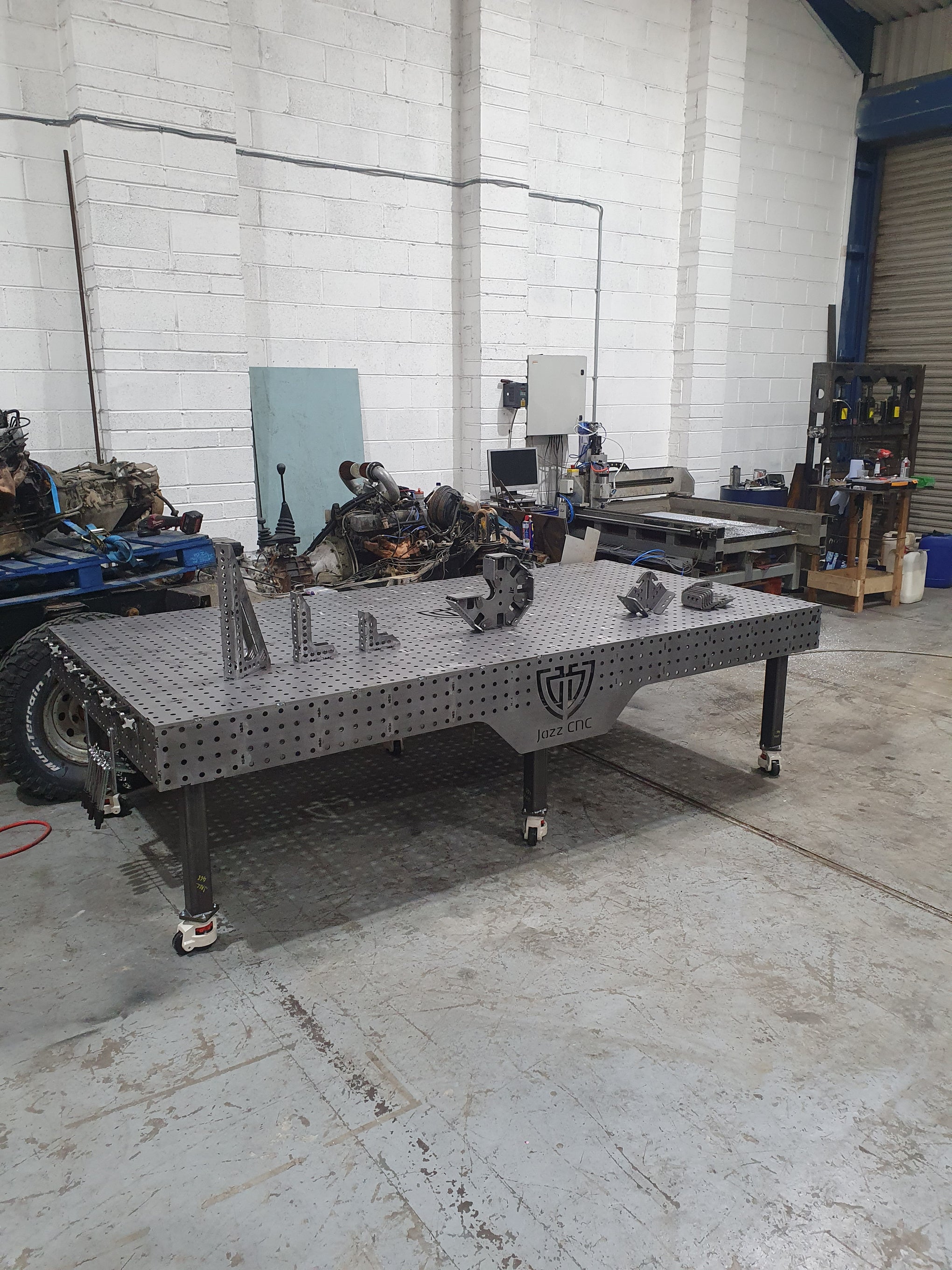

Have a Logo which you would like cutting into the table? No Problem! We will do that Free of charge! Please note you may see in some of our images the side plate logo which dips lower this is an aditional charge due extra material due to the material nesting.



Mac Industries PRO Table Key Features:

  • PRO-10 Top plate 10mm Material Thickness
  • All Mac Industries “PRO” Fixture Welding tables come with a 200mm fixture skirt/sides with 16mm holes at 50mm centres (4x holes deep)
  • Engineered in house with our Tab and slots interlock
  • 16mm securing hole 50mm apart on centres to work with all 16mm tooling and tables
  • Super strong Interlocking sub-frame every 4/5 holes spacing
  • ALL Sub-frame parts from 6mm thick S275 HRPO structural grade mild steel
  • We are very proud to guarantee a tolerance of +/- 0.2mm of all our laser cutting.
  • 16mm holes on 50mm centres work with industry standard 16mm & 5/8" tools. Optional threaded holes and other holes sizes available.
  • Using our large range of welding table tooling, squares, stops, blocks and more, you can adapt the size and shape of your welding fixture table to suit your fabrication needs.
  • Option: Footmaster Castors 80F 1000kg – Height adjustable
  • Design, Manufactured in the UK



PRO Build Options

Self-Build: Delivered flat packed for yourself to assemble and weld up (See our assembly page for more info).



Self-Build + Leg Kit: Delivered flat packed including leg steels (70x70 legs, 50x50 bracing*If requested) and mounting plates for yourself to assemble and weld up. (Does not included fixings & Customer to advise top of table height, See our assembly page for more info).



Self-Build + Leg Kit + Castors: Delivered flat packed including leg steels (70x70 legs, 50x50 bracing if requested) mounting plates, Castors for yourself to assemble and weld up. (Does not included fixings & Customer to advise top of table height during checkout, See our assembly page for more info).



Ready Made: We will assemble, weld and quality check your item. so soon receiving your table you can get fabricating something awesome!



Ready Made + Leg Kit: As above but we will all cut, assemble and weld your leg kit along with your table top. You will receive your table assembled/bolted together. (Customer to advise top of table height during checkout



Ready Made + Leg Kit + Castors: As above but we will all cut, assemble and weld your leg kit. You will receive your table assembled/bolted together with your castors fitted9 (Customer to advise top of table height during checkout).



PRO TABLES sized 2.5x1.25m and above are provided with 6x Legs and castors when selected.



Leg Kit Detail : 70x70x3 legs / 50x50x2 bracing when requested – Mild steel (NOT PAINTED)

(Customer to advise top of table height during checkout!)

Castors Detail: Foot master 80F/100F

Please note some pictures shown are computer renders and final product may differ. 600x600 Leg Kit contains one level of 25x25mm cross brassing (render shows two levels)



We do and can delivery worldwide but our website is only setup to automatically calculate delivery (Parcels and Pallets) to UK, Northern Ireland and Ireland. If you would like delivery elsewhere please get in touch for a quotation. 0330 1333 868





A lot of our items are rather heavy and will most likely be send on a pallet. The service required for your order will be worked our during checkout depending on the weight of the complete order. Smaller order and items will be sent using a next day service.


As standard the pallet service will be on a ECO Book in Service, therefore the haulage company will contact direct to ensure you are at the delivery address to accept. Delivery failures and redelivery charges will be cover by the customer.

If your order is 1.8m long and under this can be unloaded by the tail lift other wise you will be required to have suitable means to unload at the delivery address.

(NOTE: MAX WIDTH TABLES 1.8M FOR TABLE LIFT DELVIERY)



Please note this a kerb side service and will be up to the driver if they can locate the pallet elsewhere other than the kerb.

Please Note Ready Made tables under 150kg (Hobby / MiniPRO) can be sent with or without the table legs fitted. When fitted the table will be delivered upside down.

Please Note tables over 150kg (MidiPRO and above) will not be sent with the frame, legs attached, due to the safety concerns during transport.

  • No Compromises
    In Quality
  • 100% Satisfaction
    Guarantee
  • made in
    britain

Store Availability

✓ Available for pickup

  • MAC INDUSTRIES - HR6 9NR

    SHOBDON INDUSTRIAL ESTATE, SHOBDON AIRFIELD, HR6 9NR, SHOBDON, United Kingdom

    +443301333868

    Usually ready in 5+ days

Delivery Info

Please contact us to confrim stock:

Self Build (Flat Packed): 7-10 Working days

Ready Made Products): 14+ Working days

Our PRO-10 tables are the ultimate professional modular welding table fixture system. These tables are designed inhouse using the tab and slot locking interface. All PRO tables have a 200mm rib sub-frame offering maximum strength and accuracy. The PRO-10 is supplied with a material thickness of 10mm. If you do require a thicker material please check our PRO-6 or PRO-8 ranges.



Unlike other imports and cheaper constructions, we design superior sub-frame cross bracing as this is the most critical part of the fixture table to ensure a truly flat and accurate fabrication surface. We design, test and manufacture everything in house and the UK to maintain a high quality of control.



As standard all of our tables and tool includes the industry standard 16mm hole pattern (50mm hole centres) to work with all industry fixture 16D tooling.



If you cant find the size or product your after? Please get it touch as we offer bespoke sizes and designs to suit your requirements. Contact Us



We only use Hot Rolled, Pickled and Oiled S275 structural mild steel. What this means is just after the production the sheet steel is run through an acid bath (Pickling) to remove any impurities, rust and mill scale from the surfaces of the steel. This leaves the sheet raw and unprotected so a light coving of oil is used to protect it. Using HRPO is nicer for our fibre laser cutter as the laser doesn’t need to cut through mill scale and impurities which can and eventually affect the accuracy of the laser cutter therefore using HPRO Steel gives you precision cut parts which in our opinion they looks more awesome than the dreaded mill scale.



We can also offer our tables with either full thread tapped top  or half 16mm and half thread tapped. These holes can either be tapped by us or we can laser the holes for yourself to tap. Contact us for a quotation.



Have you seen our tables with painted legs? Want the same?  We offer 2k Painted Legs any RAL! Contact us for a quotation.



Have a Logo which you would like cutting into the table? No Problem! We will do that Free of charge! Please note you may see in some of our images the side plate logo which dips lower this is an aditional charge due extra material due to the material nesting.



Mac Industries PRO Table Key Features:

  • PRO-10 Top plate 10mm Material Thickness
  • All Mac Industries “PRO” Fixture Welding tables come with a 200mm fixture skirt/sides with 16mm holes at 50mm centres (4x holes deep)
  • Engineered in house with our Tab and slots interlock
  • 16mm securing hole 50mm apart on centres to work with all 16mm tooling and tables
  • Super strong Interlocking sub-frame every 4/5 holes spacing
  • ALL Sub-frame parts from 6mm thick S275 HRPO structural grade mild steel
  • We are very proud to guarantee a tolerance of +/- 0.2mm of all our laser cutting.
  • 16mm holes on 50mm centres work with industry standard 16mm & 5/8" tools. Optional threaded holes and other holes sizes available.
  • Using our large range of welding table tooling, squares, stops, blocks and more, you can adapt the size and shape of your welding fixture table to suit your fabrication needs.
  • Option: Footmaster Castors 80F 1000kg – Height adjustable
  • Design, Manufactured in the UK



PRO Build Options

Self-Build: Delivered flat packed for yourself to assemble and weld up (See our assembly page for more info).



Self-Build + Leg Kit: Delivered flat packed including leg steels (70x70 legs, 50x50 bracing*If requested) and mounting plates for yourself to assemble and weld up. (Does not included fixings & Customer to advise top of table height, See our assembly page for more info).



Self-Build + Leg Kit + Castors: Delivered flat packed including leg steels (70x70 legs, 50x50 bracing if requested) mounting plates, Castors for yourself to assemble and weld up. (Does not included fixings & Customer to advise top of table height during checkout, See our assembly page for more info).



Ready Made: We will assemble, weld and quality check your item. so soon receiving your table you can get fabricating something awesome!



Ready Made + Leg Kit: As above but we will all cut, assemble and weld your leg kit along with your table top. You will receive your table assembled/bolted together. (Customer to advise top of table height during checkout



Ready Made + Leg Kit + Castors: As above but we will all cut, assemble and weld your leg kit. You will receive your table assembled/bolted together with your castors fitted9 (Customer to advise top of table height during checkout).



PRO TABLES sized 2.5x1.25m and above are provided with 6x Legs and castors when selected.



Leg Kit Detail : 70x70x3 legs / 50x50x2 bracing when requested – Mild steel (NOT PAINTED)

(Customer to advise top of table height during checkout!)

Castors Detail: Foot master 80F/100F

Please note some pictures shown are computer renders and final product may differ. 600x600 Leg Kit contains one level of 25x25mm cross brassing (render shows two levels)



For all enquiries, please contact info@macindustries.co.uk or use our contact form.

 Fibre Laser Cut Fixture Tables Lead Times

We do hold stock of most tables in popular sizes, so weather is a self-build or Ready Made order we can quick progress with your order. Unfortunately there are times were we would have to laser cut your table / made to order due to custom size, logo integration, low stock etc. If you want to give us a call or email to check stock before you order we can advise a more accurate lead times.



  • Instock - Self Build Mac Tables - 2>3 Working Days Despatch
  • Instock - Ready Made Mac Tables - 5>6 Workings Days Despatch
  • Made to Order - Self Build Mac Tables -  7>15 Working Days Despatch
  • Made to Order - Ready Made Mac Tables - 15>25 Workings Days Despatch (Depending on workshop load)



Fibre Laser Cut Tooling

We do hold stock of all of our Mac fibre laser cut fixture table tooling (Unless specified in the listing) So weather is a self build or Ready Made order we can quick progress with your order. Unfortunately there are times were we would have to laser cut your tooling / made to order due to custom size, logo integration, low stock etc. We will advise you post order placement if there is a delay on the advised lead times below.



  • Instock - Self Build Mac Tables - 1>2 Working Days Despatch
  • Instock - Ready Made Mac Tables - 2>3 Workings Days Despatch
  • Made to Order - Self Build Mac Tables -  7>8 Working Days Despatch
  • Made to Order - Ready Made Mac Tables - 8>10 Workings Days Despatch (Depending on workshop load)





All Other Store Items (Clamps / Castors / Bolts etc.)

Stock items - despatched withing 1 > 4 days on a Next day service.



Tolerances / Material condition

We like to offer extremely tight tolerances for all our tables and tooling but we work with with HR sheet material which is de-coiled in the UK. Prior to us fibre laser cutting. Material has a sheet thickness tolerance of approx +/- 0.35 (depending on material thickness).



Unfortunately we cannot offer any tolerance on any self build tables or tooling. Ready made tables we can offer the following…



Hobby/ MiniPRO +/- 1.5mm

MidiPRO +/- 1mm

PRO +/- 1mm

ULTRA +/- 0.5mm



Alternative MAC Milled tables

If your looking for extremely fine tolerances we also offer milled / nitrated tables starting from 1x1m to 4x2m where we can offer down to +/- 0.15mm

We do and can delivery worldwide but our website is only setup to automatically calculate delivery (Parcels and Pallets) to UK, Northern Ireland and Ireland. If you would like delivery elsewhere please get in touch for a quotation. 0330 1333 868





A lot of our items are rather heavy and will most likely be send on a pallet. The service required for your order will be worked our during checkout depending on the weight of the complete order. Smaller order and items will be sent using a next day service.


As standard the pallet service will be on a ECO Book in Service, therefore the haulage company will contact direct to ensure you are at the delivery address to accept. Delivery failures and redelivery charges will be cover by the customer.

If your order is 1.8m long and under this can be unloaded by the tail lift other wise you will be required to have suitable means to unload at the delivery address.

(NOTE: MAX WIDTH TABLES 1.8M FOR TABLE LIFT DELVIERY)



Please note this a kerb side service and will be up to the driver if they can locate the pallet elsewhere other than the kerb.

Please Note Ready Made tables under 150kg (Hobby / MiniPRO) can be sent with or without the table legs fitted. When fitted the table will be delivered upside down.

Please Note tables over 150kg (MidiPRO and above) will not be sent with the frame, legs attached, due to the safety concerns during transport.
