"Absolute game changer!! Wish I bought one years ago!
Verified buyer
MAC INDUSTRIES - We manufacture all our Tables In-House on our extremly powerfully and highly accurate Brand New 2023 12kw Fibre Laser with precision of ± 0.1mm., All tables are de-burred and dressed. Any question dont hesitate to call us as we the manufactures, designers, welders all under one roof.
Don't waste your time with inferior imitation of MAC
Made In Britan > Made In Herefordshire > Made In House
ULTRA10 is our 2022 Best Selling Heavy Duty Table! Providing Dyson, Ocardo, Ginetta, Bentley Racing, Clayton Engineeing plus many more!

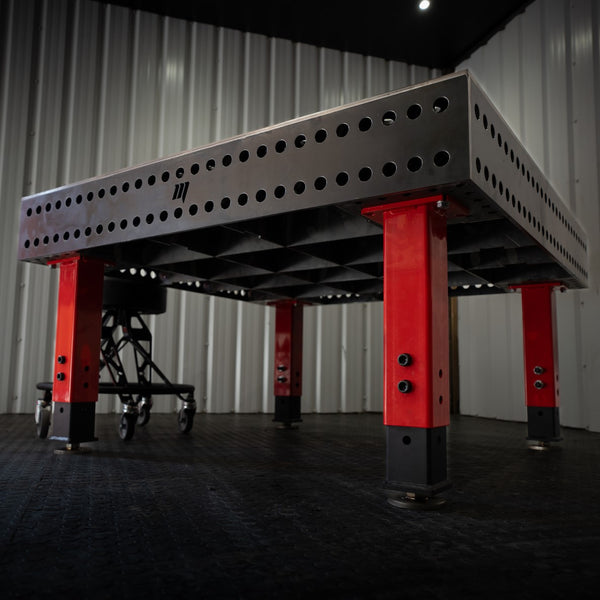

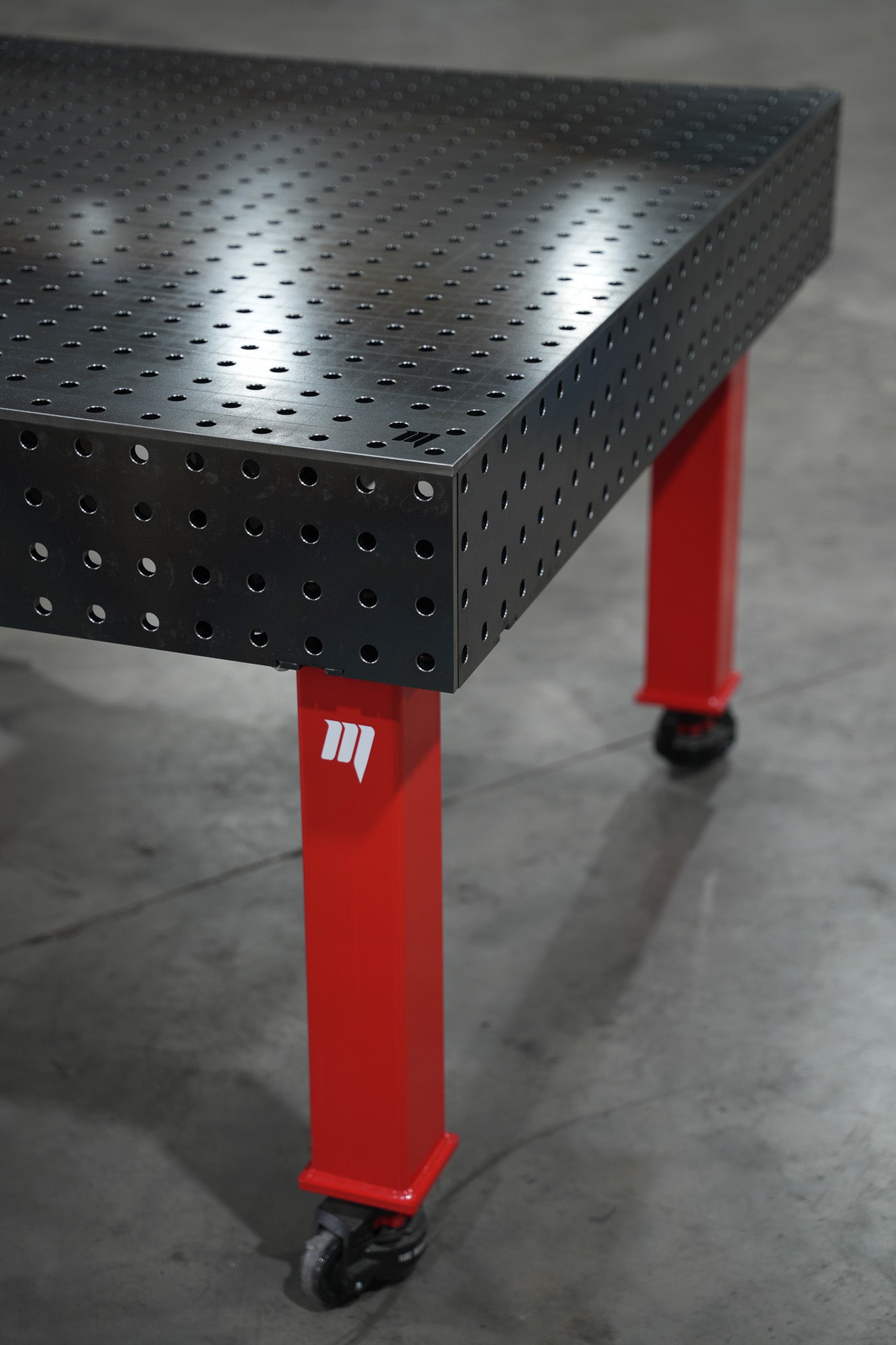

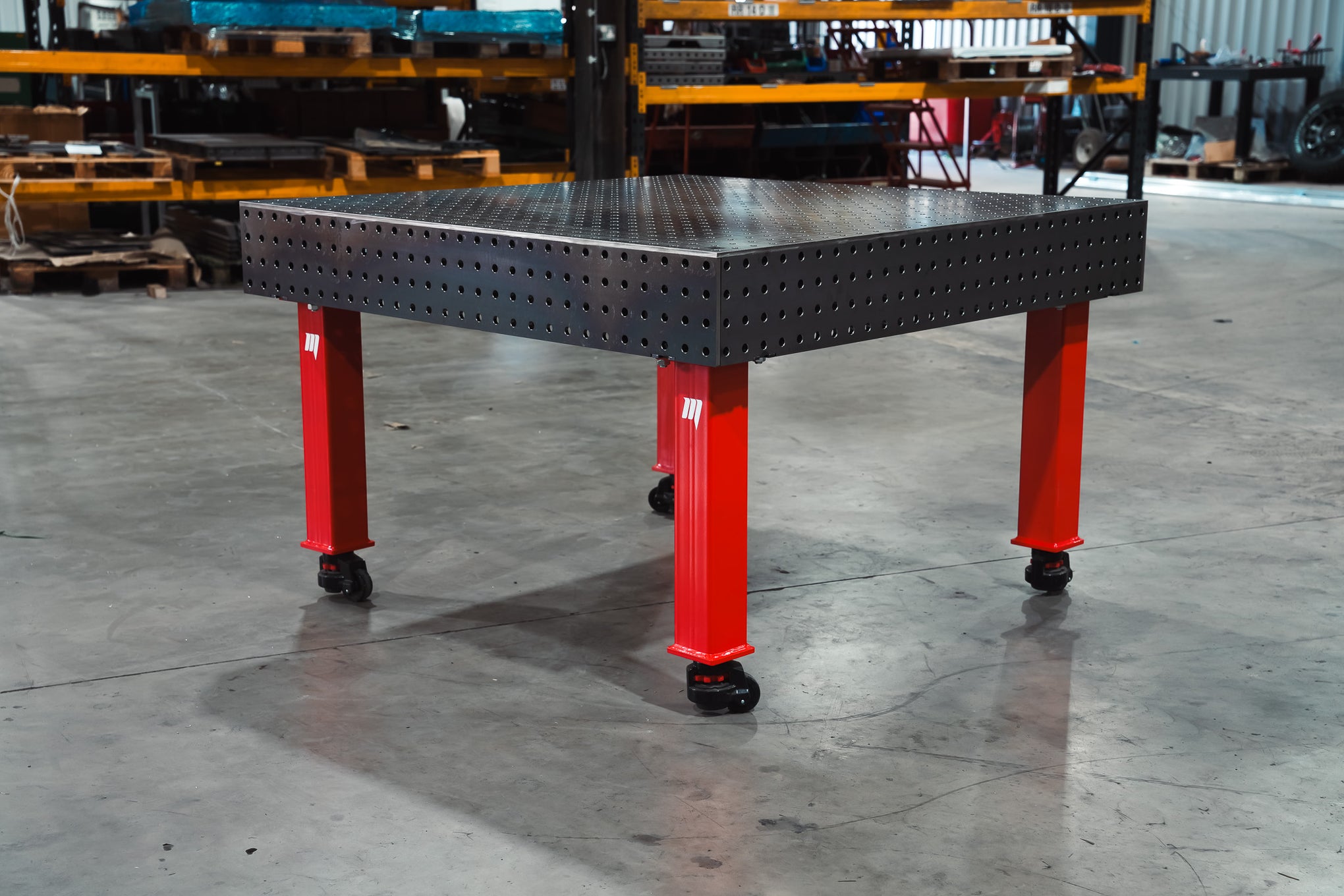

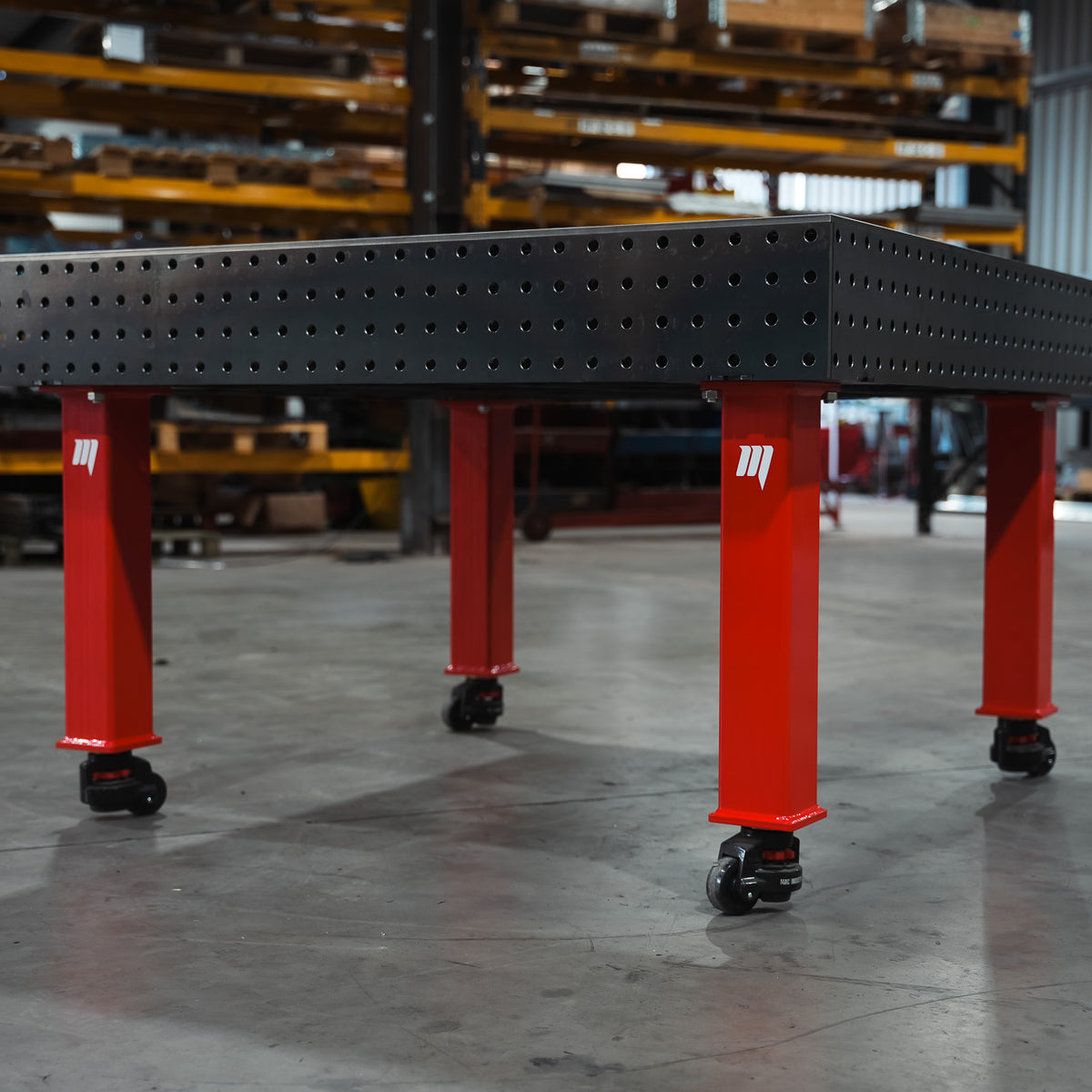

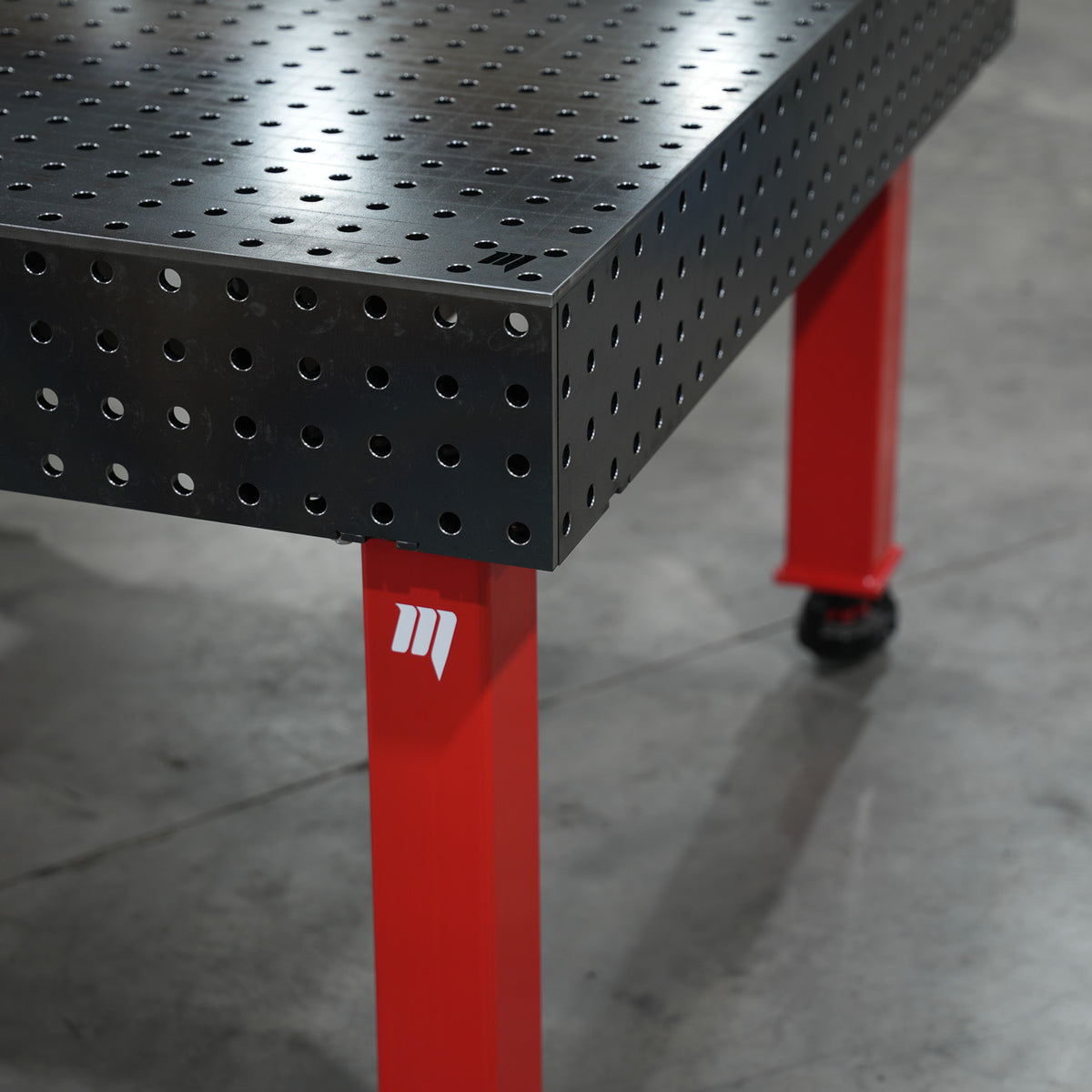

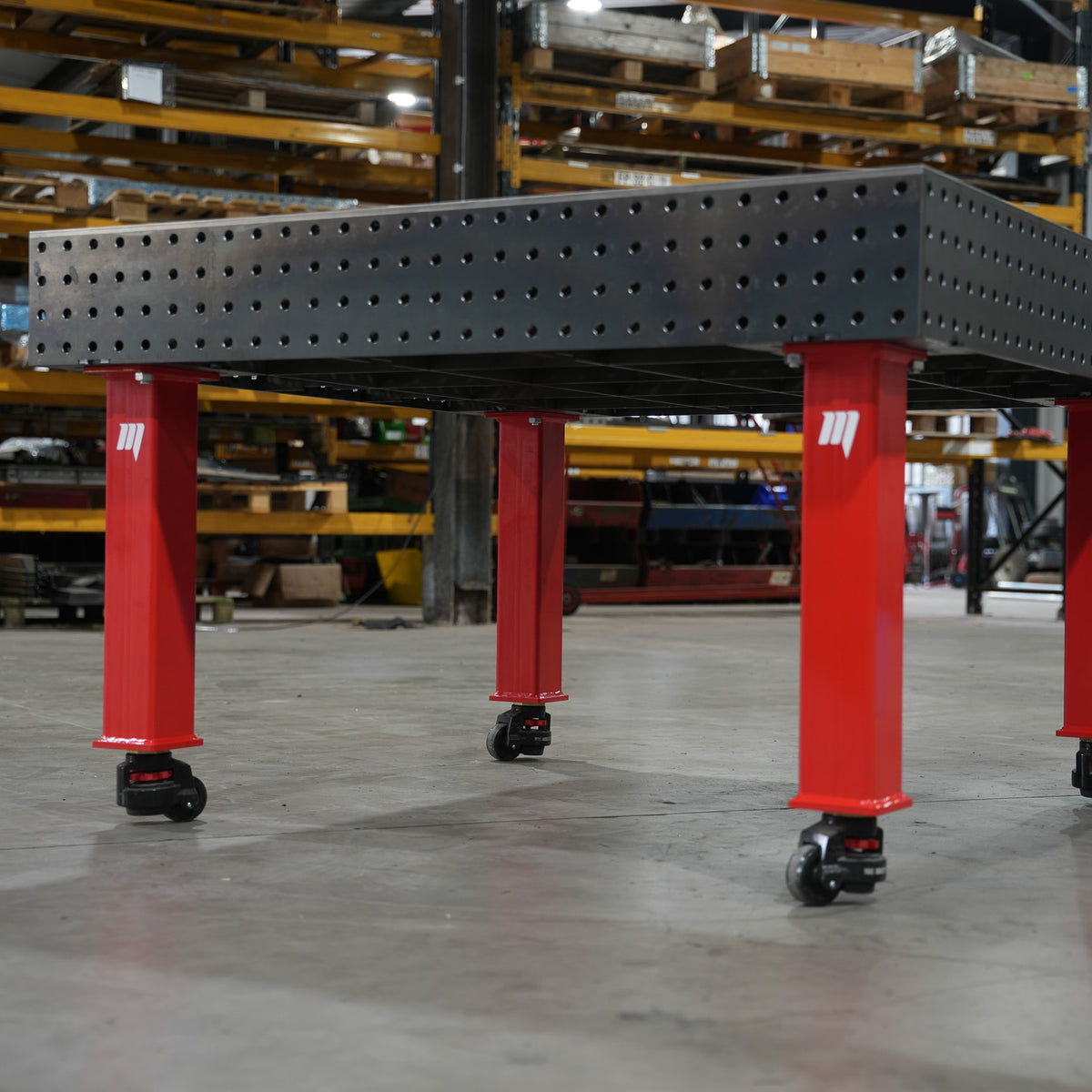

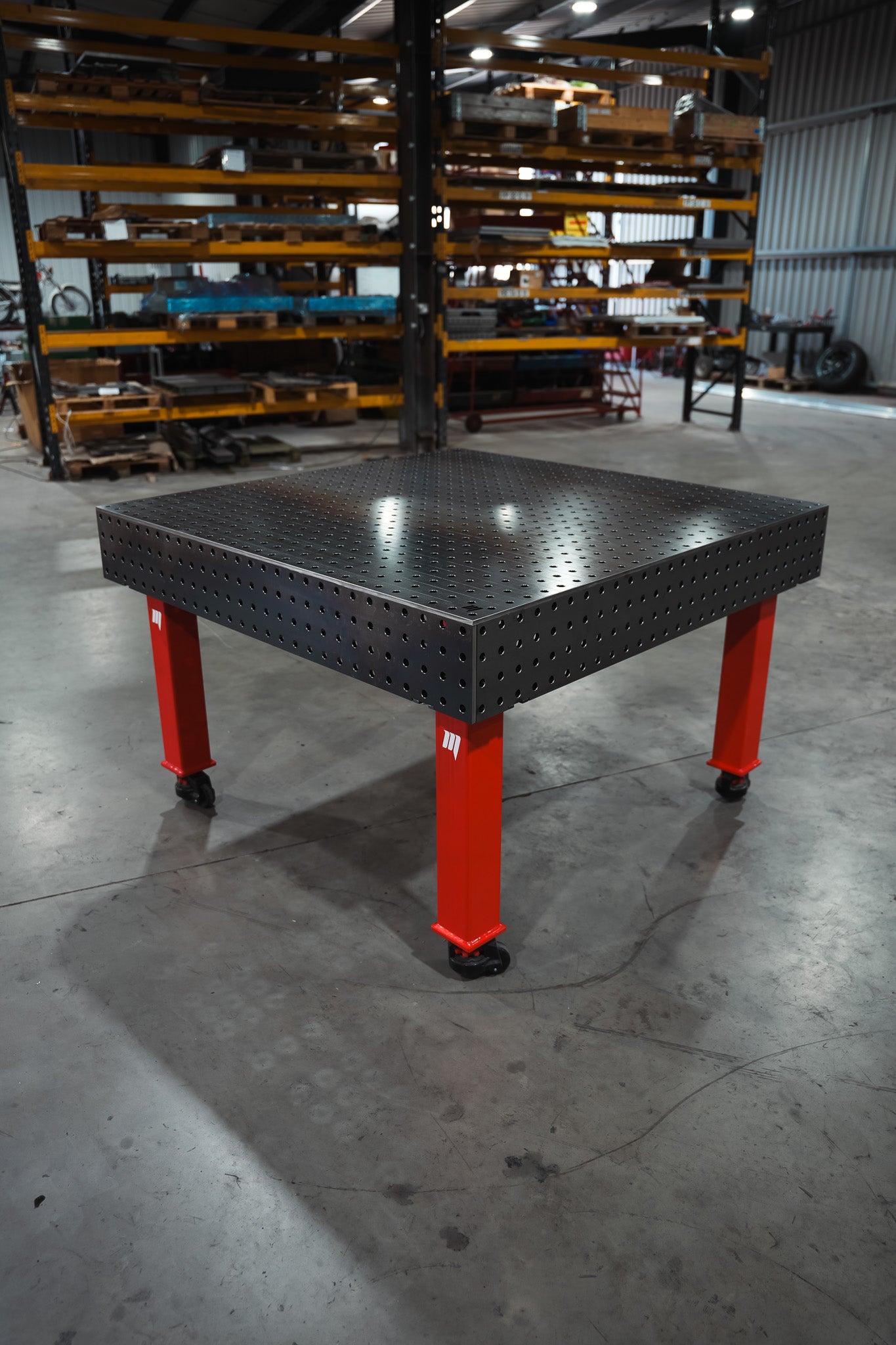

Our ULTRA10 are the ultimate professional modular welding table fixture system. These tables are designed inhouse using the tab and slot locking interface. Manufactured from high grade S355J2+N All ULTRA tables have a 200mm deep rib sub-frame offering maximum strength and accuracy. The ULTRA10 is supplied with a material thickness of 10mm of the top plates and 10mm sides with chamfer holes.
Unlike other imports and cheaper constructions, we design superior sub-frame cross bracing as this is the most critical part of the fixture table to ensure a truly flat and accurate fabrication surface. We design, test and manufacture everything in house and the UK to maintain a high quality of control.
As standard all of our tables and tool includes the industry standard 16mm hole pattern (50mm hole centres) to work with all industry fixture 16D tooling. We also offer 28mm fixture points at 100mm centres.
If you cant find the size or product your after? Please get it touch as we offer bespoke sizes and designs to suit your requirements. Contact Us
We can also offer our tables with either full thread tapped top or half 16mm and half thread tapped. These holes can either be tapped by us or we can laser the holes for yourself to tap. Contact us for a quotation.
Mac Industries ULTRA Table Key Features:
- ULTRA10 High Grade S355J2+N 10mm Thick Top 10mm Side skirts.
- 200mm fixture skirt/sides with 16mm holes at 50mm centres (4x holes deep)
- Made in Britian & Made In House
- 16mm securing hole 50mm apart on centres to work with all 16mm tooling and tables
- Super strong Interlocking sub-frame every 4/5 holes spacing
- 16mm holes on 50mm centres or 28D on 100mm Centres work with industry standard 16mm & 5/8" tools. Optional threaded holes and other holes sizes available.
- Using our large range of welding table tooling, squares, stops, blocks and more, you can adapt the size and shape of your welding fixture table to suit your fabrication needs.

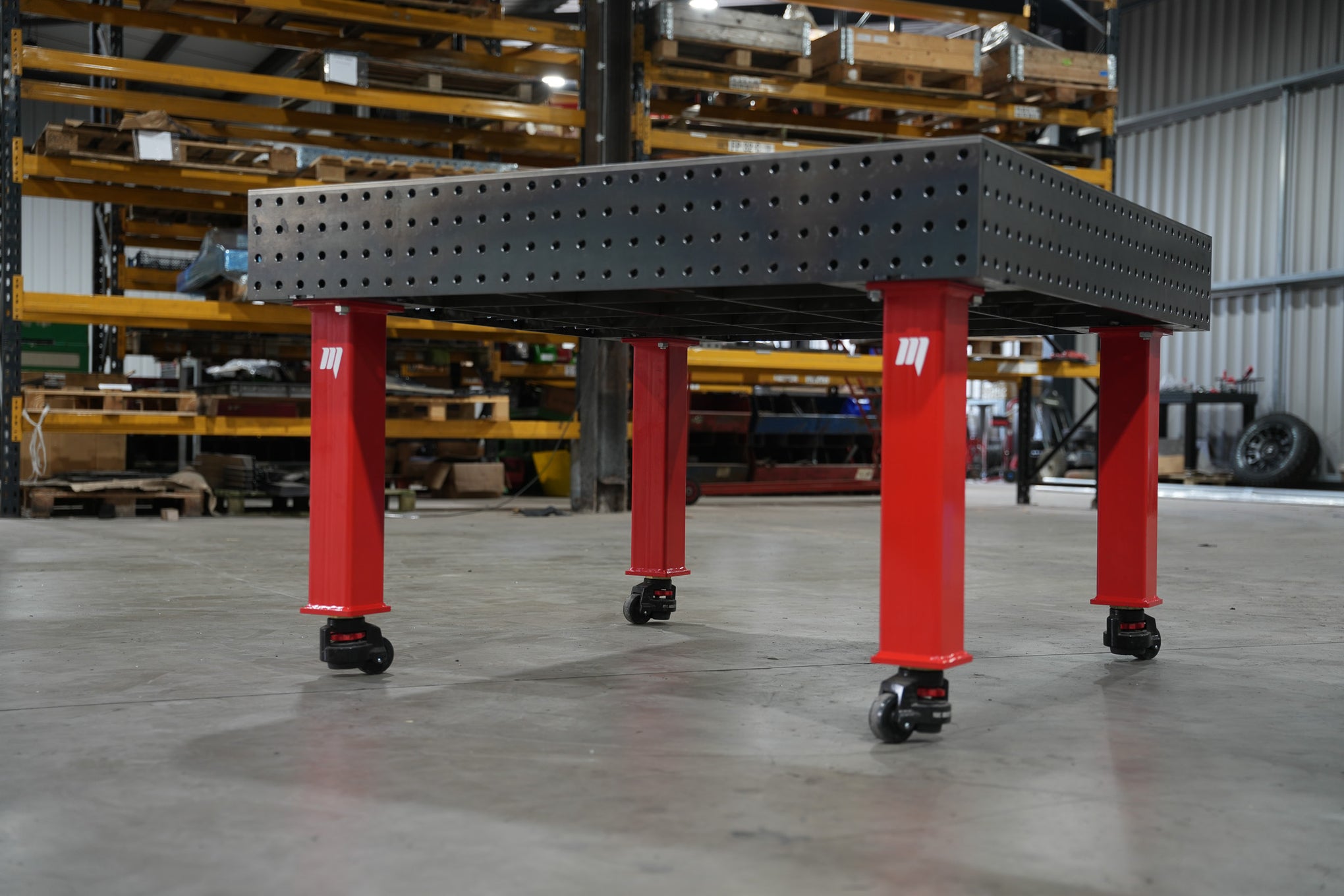

- Option: Footmaster Castors 100S 2000kg – Height adjustable
- Design, Manufactured in the UK

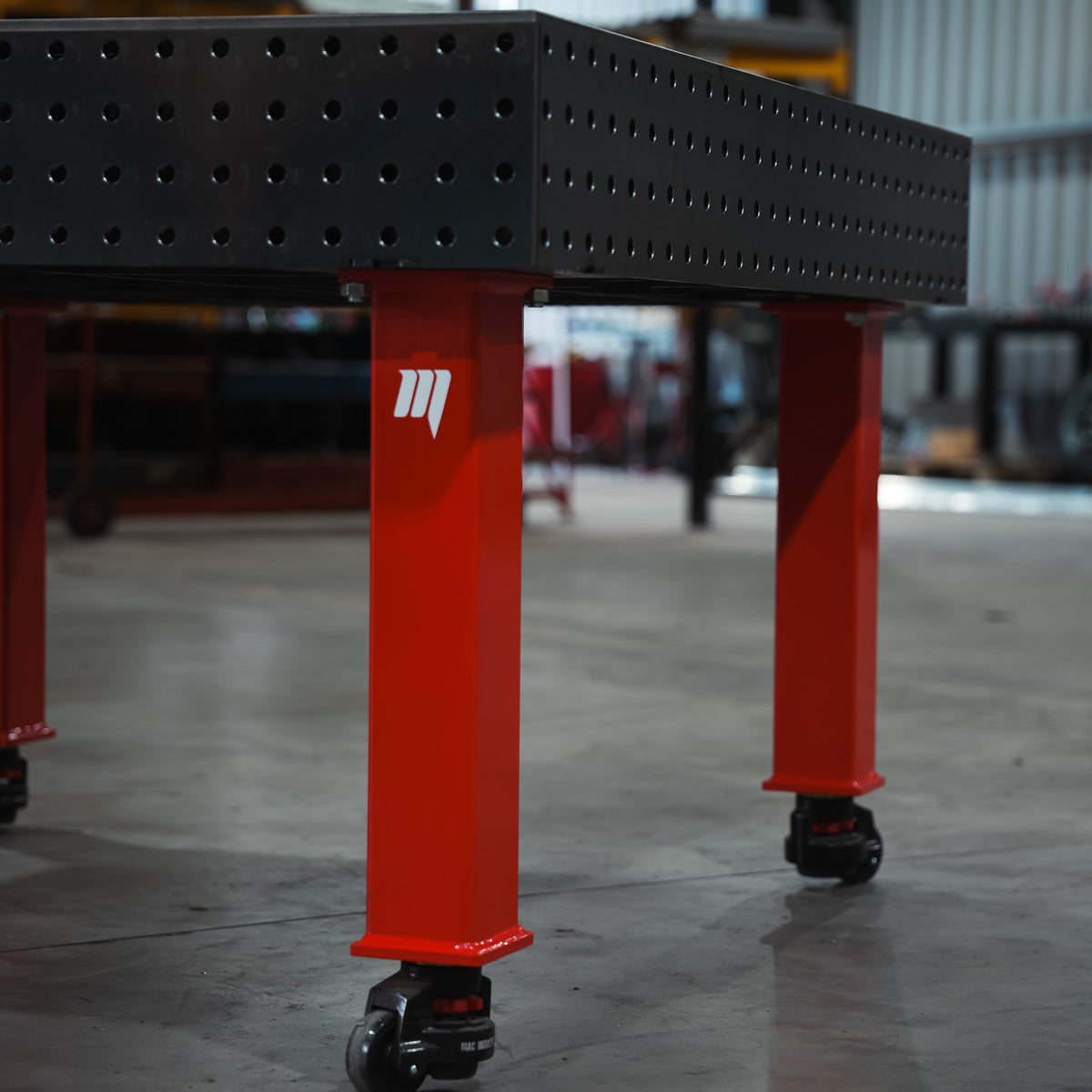

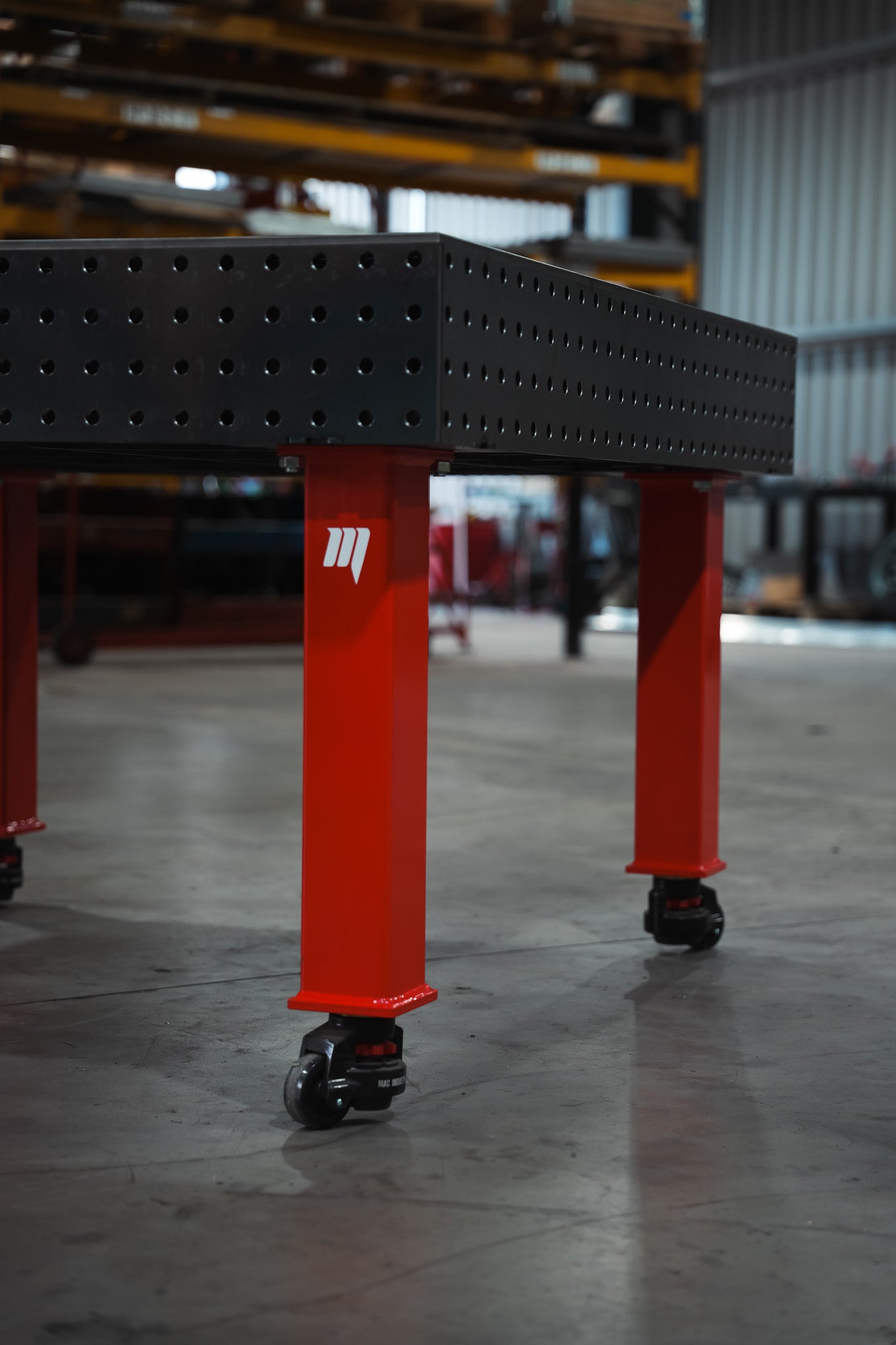

- Red powder-coated legs as standard (Other RAL code colour options available).
- Table legs made of profile 100x100mm
- Capacity: 850 kg/leg (adjustable footplate not FM Castors)
- Stable and massive construction
- The highest quality of workmanship
- Perfect flatness of the table (+/- 0,5 mm)
- Holes of system ø16 in grid 50x50 or ø28 in the grid 100x100

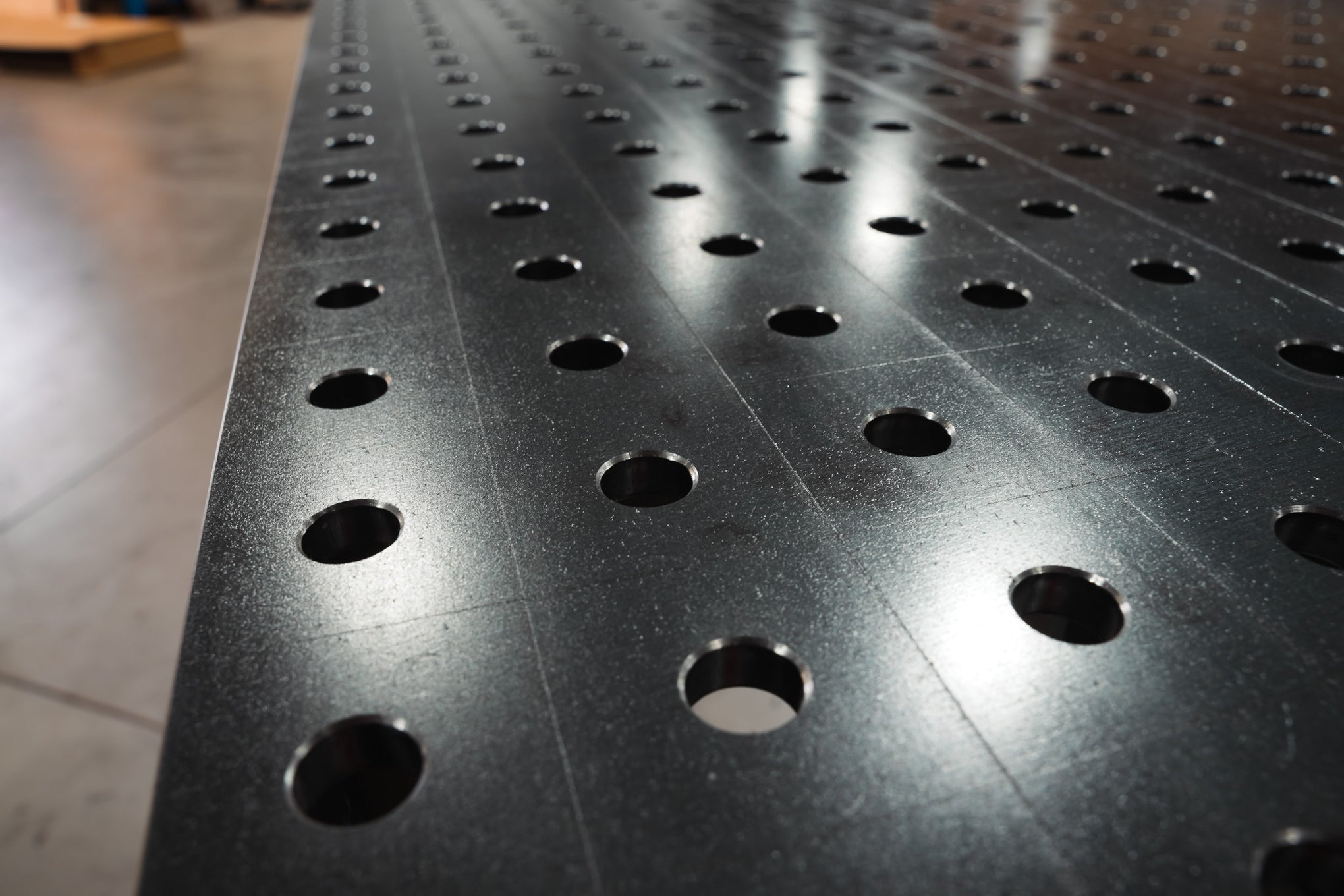

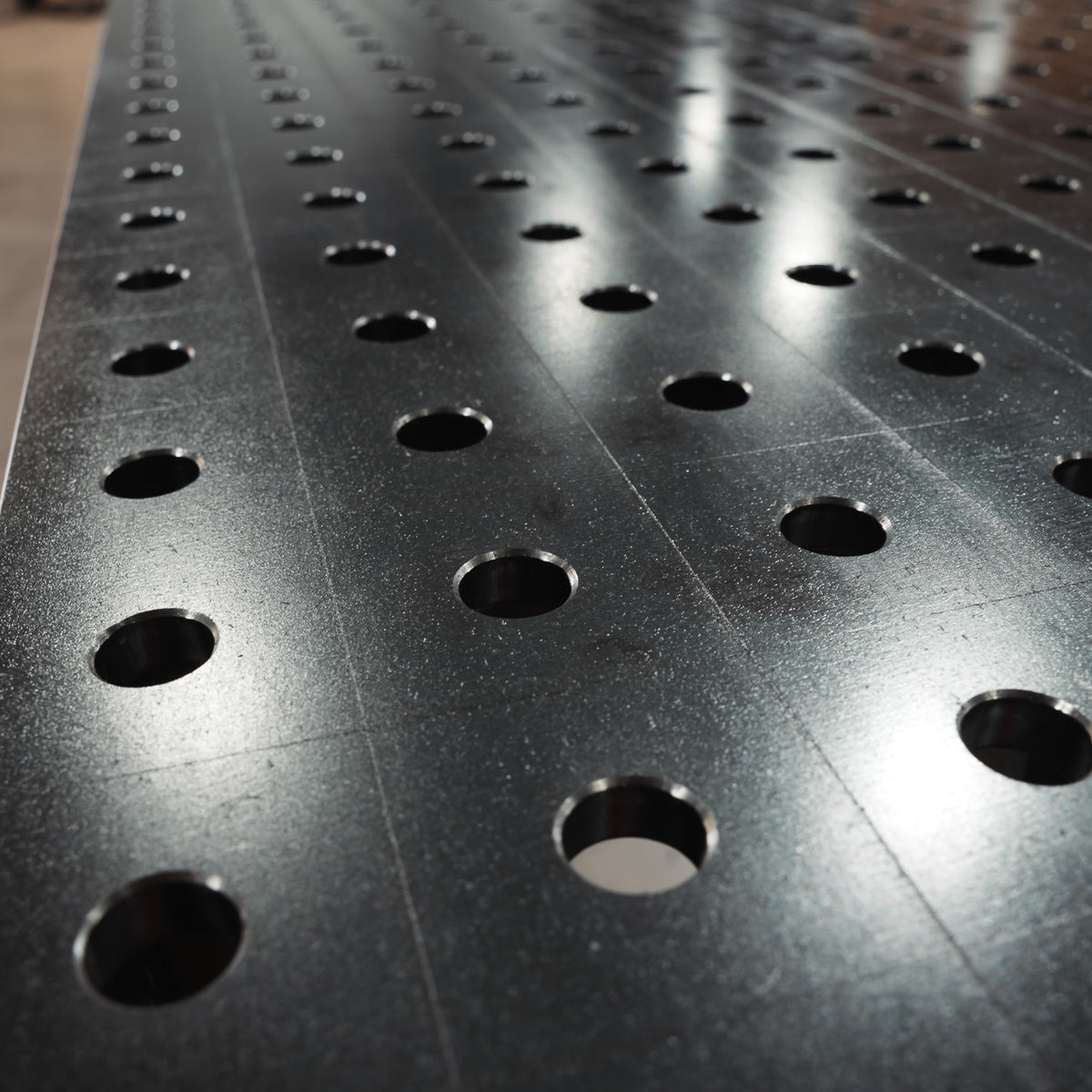

- Chamfered and fibre laser cut holes for easy tool assembly
- Height adjustment of the table with standard legs approx. 880-930mm
- Etched scale in the grid 50x50 or 100x100mm
- Possibility of using stainless steel covers
- Tables can be combined freely to extend a working surface
- All tables are reinforced with structural ribs
ULTRA Build Options
Ready Made: We will assemble your table on our inhouse custom jig to ensure a truly flat surface, weld and quality check your item. so soon receiving your table you can get fabricating something awesome!
Ready Made + Leg Kit: As above but we will all cut, assemble and weld your leg kit along with your table top. You will receive your table assembled/bolted together. (Customer to advise top of table height during checkout)
Ready Made + Leg Kit + Castors: As above but we will all cut, assemble and weld your leg kit. You will receive your table assembled/bolted together with your castors fitted9 (Customer to advise top of table height during checkout).
ULTRA TABLES sized 2.8x1.4m and above are provided with 6x Legs and castors when selected.
Leg Kit Detail : 100x100x3 legs – (RED PAINTED)
(Customer to advise top of table height during checkout!)
Castors Detail: Foot master 100S - TABLE TO BE REPOSITIONED / MOVED UNLADEN (NO LOAD ON TABLE)
Please note some pictures shown are computer renders and final product may differ.
For all enquiries, please contact info@macindustries.co.uk or use our contact form.
Fibre Laser Cut Fixture Tables Lead Times
We do hold stock of most tables in popular sizes, so weather is a self-build or Ready Made order we can quick progress with your order. Unfortunately there are times were we would have to laser cut your table / made to order due to custom size, logo integration, low stock etc. If you want to give us a call or email to check stock before you order we can advise a more accurate lead times.
- Instock - Self Build Mac Tables - 2>3 Working Days Despatch
- Instock - Ready Made Mac Tables - 5>6 Workings Days Despatch
- Made to Order - Self Build Mac Tables - 7>15 Working Days Despatch
- Made to Order - Ready Made Mac Tables - 15>25 Workings Days Despatch (Depending on workshop load)
Fibre Laser Cut Tooling
We do hold stock of all of our Mac fibre laser cut fixture table tooling (Unless specified in the listing) So weather is a self build or Ready Made order we can quick progress with your order. Unfortunately there are times were we would have to laser cut your tooling / made to order due to custom size, logo integration, low stock etc. We will advise you post order placement if there is a delay on the advised lead times below.
- Instock - Self Build Mac Tables - 1>2 Working Days Despatch
- Instock - Ready Made Mac Tables - 2>3 Workings Days Despatch
- Made to Order - Self Build Mac Tables - 7>8 Working Days Despatch
- Made to Order - Ready Made Mac Tables - 8>10 Workings Days Despatch (Depending on workshop load)
All Other Store Items (Clamps / Castors / Bolts etc.)
Stock items - despatched withing 1 > 4 days on a Next day service.
Tolerances / Material condition
We like to offer extremely tight tolerances for all our tables and tooling but we work with with HR sheet material which is de-coiled in the UK. Prior to us fibre laser cutting. Material has a sheet thickness tolerance of approx +/- 0.35 (depending on material thickness).
Unfortunately we cannot offer any tolerance on any self build tables or tooling. Ready made tables we can offer the following…
Hobby/ MiniPRO +/- 1.5mm
MidiPRO +/- 1mm
PRO +/- 1mm
ULTRA +/- 0.5mm
Alternative MAC Milled tables
If your looking for extremely fine tolerances we also offer milled / nitrated tables starting from 1x1m to 4x2m where we can offer down to +/- 0.15mm
We do and can delivery worldwide but our website is only setup to automatically calculate delivery (Parcels and Pallets) to UK, Northern Ireland and Ireland. If you would like delivery elsewhere please get in touch for a quotation. 0330 1333 868
A lot of our items are rather heavy and will most likely be send on a pallet. The service required for your order will be worked our during checkout depending on the weight of the complete order. Smaller order and items will be sent using a next day service.
As standard the pallet service will be on a ECO Book in Service, therefore the haulage company will contact direct to ensure you are at the delivery address to accept. Delivery failures and redelivery charges will be cover by the customer.
If your order is 1.8m long and under this can be unloaded by the tail lift other wise you will be required to have suitable means to unload at the delivery address.
(NOTE: MAX WIDTH TABLES 1.8M FOR TABLE LIFT DELVIERY)
Please note this a kerb side service and will be up to the driver if they can locate the pallet elsewhere other than the kerb.
Please Note Ready Made tables under 150kg (Hobby / MiniPRO) can be sent with or without the table legs fitted. When fitted the table will be delivered upside down.
Please Note tables over 150kg (MidiPRO and above) will not be sent with the frame, legs attached, due to the safety concerns during transport.
