EZ Square Reverse 3D 200mm - 90 Degree Speed Square - Made In Britain - Welding Fabrication Tooling - EZ-SQ200VX

£29.99 £24.99 VAT excl.

EZ-SQUARE - REVERSE 3D

Due to the popular demand and supply of our original Rapid Squares (Which are still available) we have designed a new range of Speed Squares to complement our current range.

We have three sizes available and also a choice of material in the EZ-SQ100 where we offer Mild or Stainless Steel. Our new EZ Squares are manufactured from 6mm Mild Steel S275 (Pickled and Oiled) or 304 Stainless Steel.


After fiber laser cutting the profiles we rumble the steel in a tumbling machine with ceramic media to de-burr and remove any sharp edges, from this stage we then move over to the 4 axis 60Ton 1200mm CNC Press Brake to ensure two highly accurate 90 degree folds are carried out. The Ez Square is now formed and checked for accuracy before we punch the steel with our "Made In Britain" Stamp. Then it’s packaged and ready to be sent out for action.

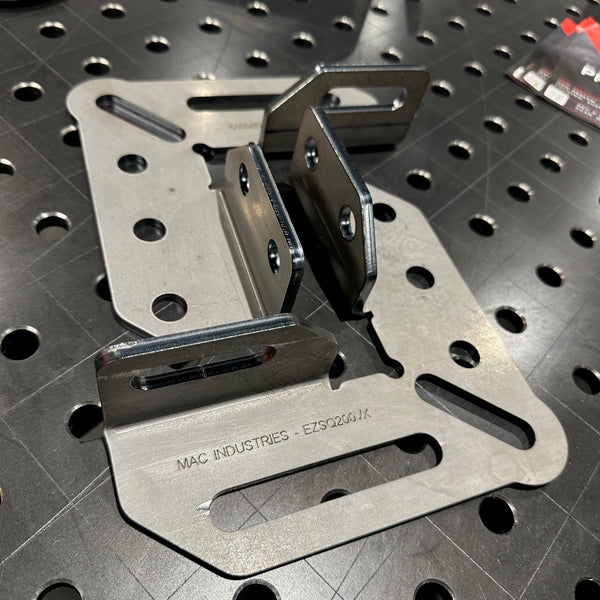

EZ-SQ200 - REVERSE

Our Precision 6mm thick Ez Speed Squares are Fibre Laser cut and CNC formed press braked using the newest technology and equipment available.



FEATURES

Materials Available: Mild Steel S275

Finish: All Squares a Rumbled finish using a tumbler between cutting and folding.

Fibre Laser Cut Accurate to within +/- 0.2mm

CNC Folded Accurate to within +/- 0.2°

1no. Flange features a 16mm slot

1no. Flange features 2x 16mm Through holes

Can be used with or without a fixture table.



Made In Britain > Made to Last



Mac Ind being registered members of Made In Britain,

.











MEASUREMENTS

A- 200mm Overall (x)

B- 200mm Overall (y)

C- 60mm (FOLDED FLANGE Height)

D- 64mm (FOLDED FLANGE Width)



NOTE: "Ez Square" is a product manufactured by McIntosh Industries Limited T/A Mac Industries in the UK.

We do and can delivery worldwide but our website is only setup to automatically calculate delivery (Parcels and Pallets) to UK, Northern Ireland and Ireland. If you would like delivery elsewhere please get in touch for a quotation. 0330 1333 868





A lot of our items are rather heavy and will most likely be send on a pallet. The service required for your order will be worked our during checkout depending on the weight of the complete order. Smaller order and items will be sent using a next day service.


As standard the pallet service will be on a ECO Book in Service, therefore the haulage company will contact direct to ensure you are at the delivery address to accept. Delivery failures and redelivery charges will be cover by the customer.

If your order is 1.8m long and under this can be unloaded by the tail lift other wise you will be required to have suitable means to unload at the delivery address.

(NOTE: MAX WIDTH TABLES 1.8M FOR TABLE LIFT DELVIERY)



Please note this a kerb side service and will be up to the driver if they can locate the pallet elsewhere other than the kerb.

Please Note Ready Made tables under 150kg (Hobby / MiniPRO) can be sent with or without the table legs fitted. When fitted the table will be delivered upside down.

Please Note tables over 150kg (MidiPRO and above) will not be sent with the frame, legs attached, due to the safety concerns during transport.
