Modular design to be used with a fixture jig tables with 16mm through holes on 25/50mm centres
unlike cast ground (Expensive) squares WeldTrue Squares are manufactured as self-build kits giving you accurate low cost tooling.
Note: Some images are a computer rendering representation of the product therefore colour & finish may differ.
FEATURES
- Engineered in house heat dissipating waved key and slots interlock
- Manufactured from 6mm S275 HRPO Mild Steel (Superior)
- All parts highly accurate CNC Laser cut.
- 16mm securing hole 25mm apart on centres to work with all 16mm tooling and tables
- Precision tooling when constructed correctly
- Can be used and secured both vertical or Horizontal
- Laser cut with a guaranteed tolerance of +/-0.2mm
- Designed and manufactured in the UK
CONTAINS

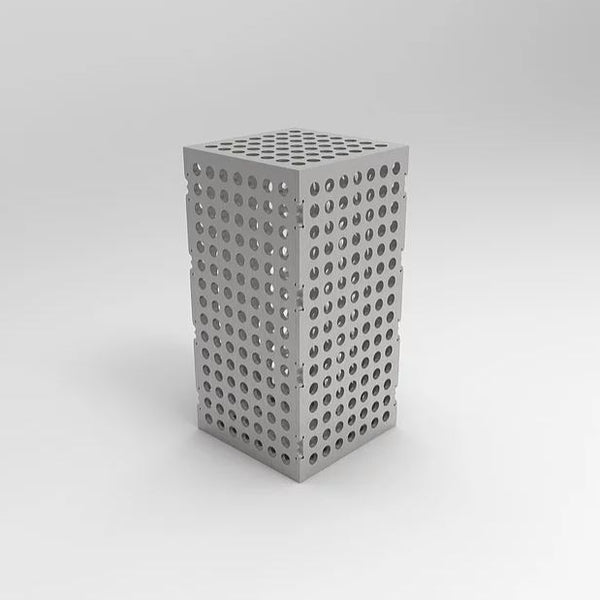

1no. MAC Pro LIFT Block 400x200x200
BUILD OPTIONS
Self-Assembly (flat packed/Self-Weld)
All of our tables and tooling can we assembled without a clamp insight! With only threaded bar, nuts + washers meaning our tables can be constructed by someone at any skill level!
Beginning with light deburr of the laser cut edge to ensure correct true fitment and placement of the threaded bar where indicated on the instruction plus a number of tacks and light clean up your ready to begin fabbin!
We sell separately table assembly kits via our website if required.
Ready Made by Mac
If you haven't got the time in the day to self-assembly your product Mac Industries offer a Ready Made service where you have received you product ready to go out of the box or pallet! We will deburr, TIG Weld, quality check an despatch as quick as we can.
Please note this will this will add time on to receiving order you. An ETA will be confirmed depending on workshop load etc.
For all enquiries, please contact info@macindustries.co.uk or use our contact form.
Fibre Laser Cut Fixture Tables Lead Times
We do hold stock of most tables in popular sizes, so weather is a self-build or Ready Made order we can quick progress with your order. Unfortunately there are times were we would have to laser cut your table / made to order due to custom size, logo integration, low stock etc. If you want to give us a call or email to check stock before you order we can advise a more accurate lead times.
- Instock - Self Build Mac Tables - 2>3 Working Days Despatch
- Instock - Ready Made Mac Tables - 5>6 Workings Days Despatch
- Made to Order - Self Build Mac Tables - 7>15 Working Days Despatch
- Made to Order - Ready Made Mac Tables - 15>25 Workings Days Despatch (Depending on workshop load)
Fibre Laser Cut Tooling
We do hold stock of all of our Mac fibre laser cut fixture table tooling (Unless specified in the listing) So weather is a self build or Ready Made order we can quick progress with your order. Unfortunately there are times were we would have to laser cut your tooling / made to order due to custom size, logo integration, low stock etc. We will advise you post order placement if there is a delay on the advised lead times below.
- Instock - Self Build Mac Tables - 1>2 Working Days Despatch
- Instock - Ready Made Mac Tables - 2>3 Workings Days Despatch
- Made to Order - Self Build Mac Tables - 7>8 Working Days Despatch
- Made to Order - Ready Made Mac Tables - 8>10 Workings Days Despatch (Depending on workshop load)
All Other Store Items (Clamps / Castors / Bolts etc.)
Stock items - despatched withing 1 > 4 days on a Next day service.
Tolerances / Material condition
We like to offer extremely tight tolerances for all our tables and tooling but we work with with HR sheet material which is de-coiled in the UK. Prior to us fibre laser cutting. Material has a sheet thickness tolerance of approx +/- 0.35 (depending on material thickness).
Unfortunately we cannot offer any tolerance on any self build tables or tooling. Ready made tables we can offer the following…
Hobby/ MiniPRO +/- 1.5mm
MidiPRO +/- 1mm
PRO +/- 1mm
ULTRA +/- 0.5mm
Alternative MAC Milled tables
If your looking for extremely fine tolerances we also offer milled / nitrated tables starting from 1x1m to 4x2m where we can offer down to +/- 0.15mm
We do and can delivery worldwide but our website is only setup to automatically calculate delivery (Parcels and Pallets) to UK, Northern Ireland and Ireland. If you would like delivery elsewhere please get in touch for a quotation. 0330 1333 868
A lot of our items are rather heavy and will most likely be send on a pallet. The service required for your order will be worked our during checkout depending on the weight of the complete order. Smaller order and items will be sent using a next day service.
As standard the pallet service will be on a ECO Book in Service, therefore the haulage company will contact direct to ensure you are at the delivery address to accept. Delivery failures and redelivery charges will be cover by the customer.
If your order is 1.8m long and under this can be unloaded by the tail lift other wise you will be required to have suitable means to unload at the delivery address.
(NOTE: MAX WIDTH TABLES 1.8M FOR TABLE LIFT DELVIERY)
Please note this a kerb side service and will be up to the driver if they can locate the pallet elsewhere other than the kerb.
Please Note Ready Made tables under 150kg (Hobby / MiniPRO) can be sent with or without the table legs fitted. When fitted the table will be delivered upside down.
Please Note tables over 150kg (MidiPRO and above) will not be sent with the frame, legs attached, due to the safety concerns during transport.
