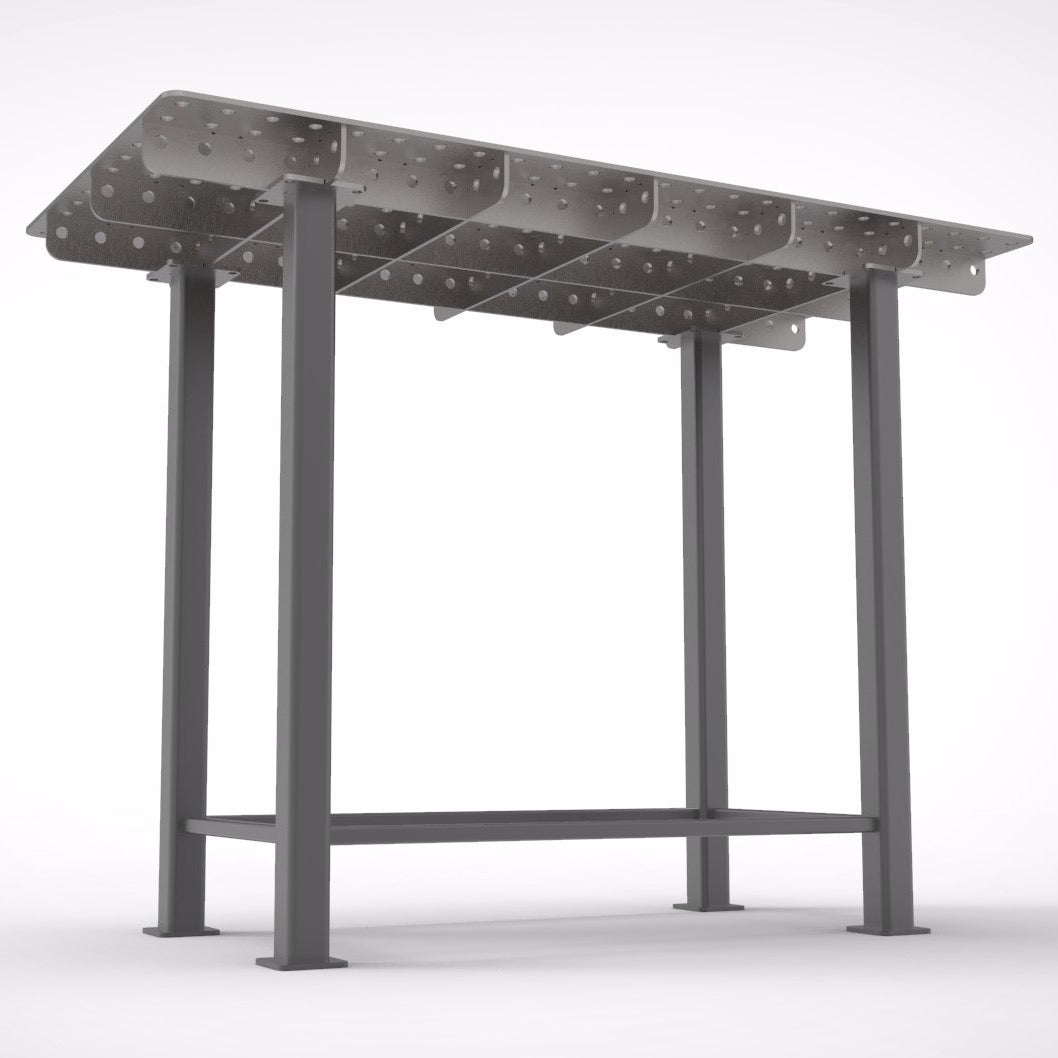

Unlike other imports and cheap constructions we design superior sub-frame cross bracing as this is the most critical part of the fixture table to ensure a truly flat and accurate surface. We design, test and manufacture everything in house and the UK to maintain a high quality of control.
All of our tables and tooling include the industry standard 16mm hole pattern (50mm hole centres) this works with all industry fixture 16D tooling. You can also have your table with treaded or 28mm holes.
We only use Hot Rolled, Pickled and Oiled S275 structural mild steel. What this means is just after the production the sheet steel is run through an acid bath (Pickling) to remove any impurities, rust and mill scale from the surfaces of the steel. This leaves the sheet raw and unprotected so a light coving of oil is used to protect it. Using HRPO is nicer for our fibre laser cutter as the laser doesn’t need to cut through mill scale and impurities which can eventually affect the accuracy of the laser cutter therefore using HPRO Steel gives you precision cut parts which in our opinion they looks more awesome than the dreaded mill scale.
Mac Industries Hobby Table Key Features:
- Engineered in house with our Mac waved tab and slots interlock
- 16mm securing hole 50mm apart on centres to work with all 16mm tooling and tables

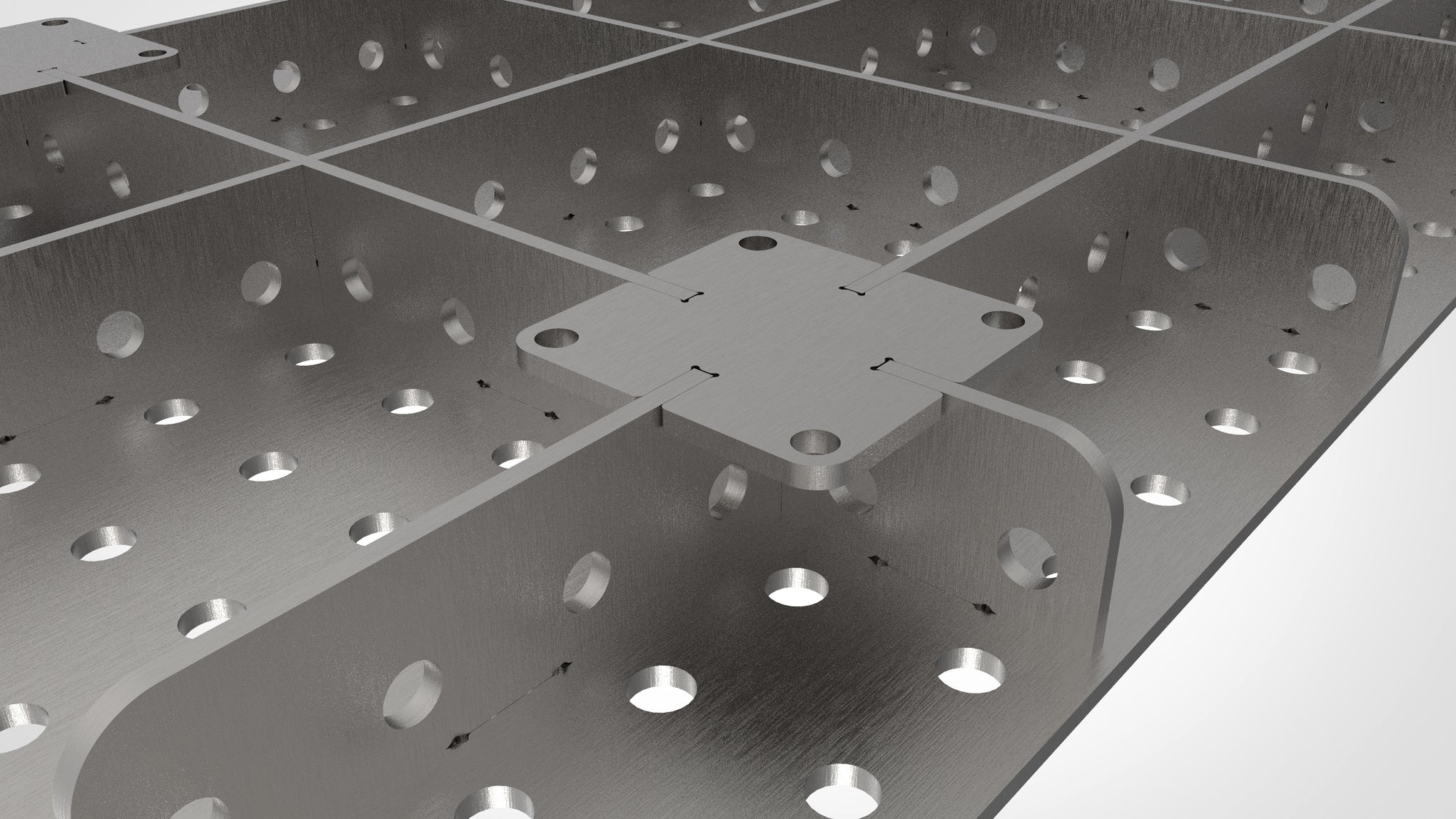

- Super strong Interlocking sub-frame every 4/5 holes spacing
- ALL parts from 6mm thick S275 HRPO structural grade mild steel
- We are very proud to guarantee a tolerance of +/- 0.2mm of all our laser cutting.
- 16mm holes on 50mm centres work with industry standard 16mm & 5/8" tools. Optional threaded holes and 28mm available.
- Using our large range of welding table tooling, squares, stops, blocks and more, you can adapt the size and shape of your welding fixture table to suit your fabrication needs.
- 700kg 100mm RED Castors 2no. Braked 2no. Un-braked
- Design, Manufactured in the UK
Hobby Build Options

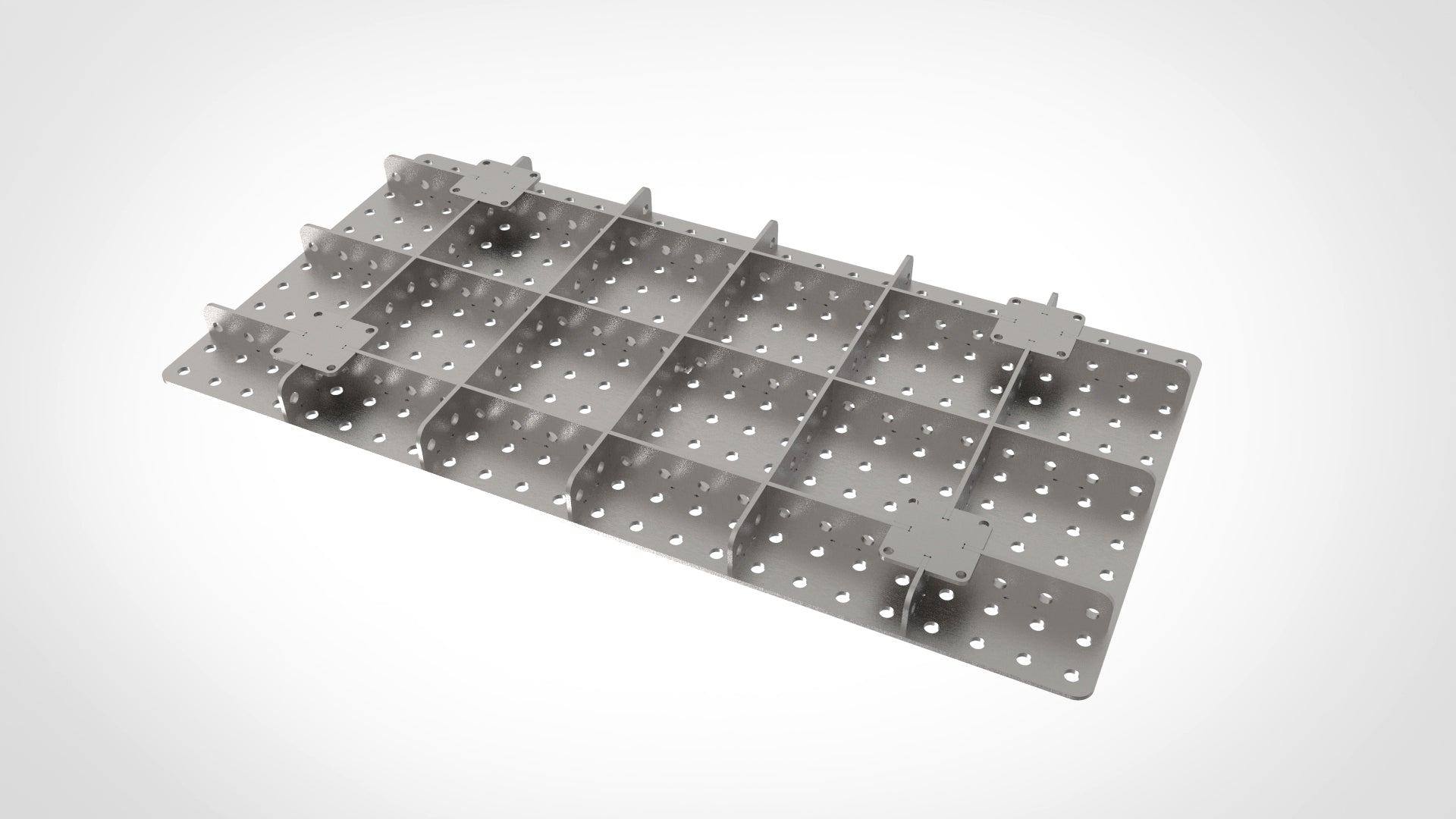

Self-Build: Delivered flat packed for yourself to assemble and weld up (See our assembly page for more details).

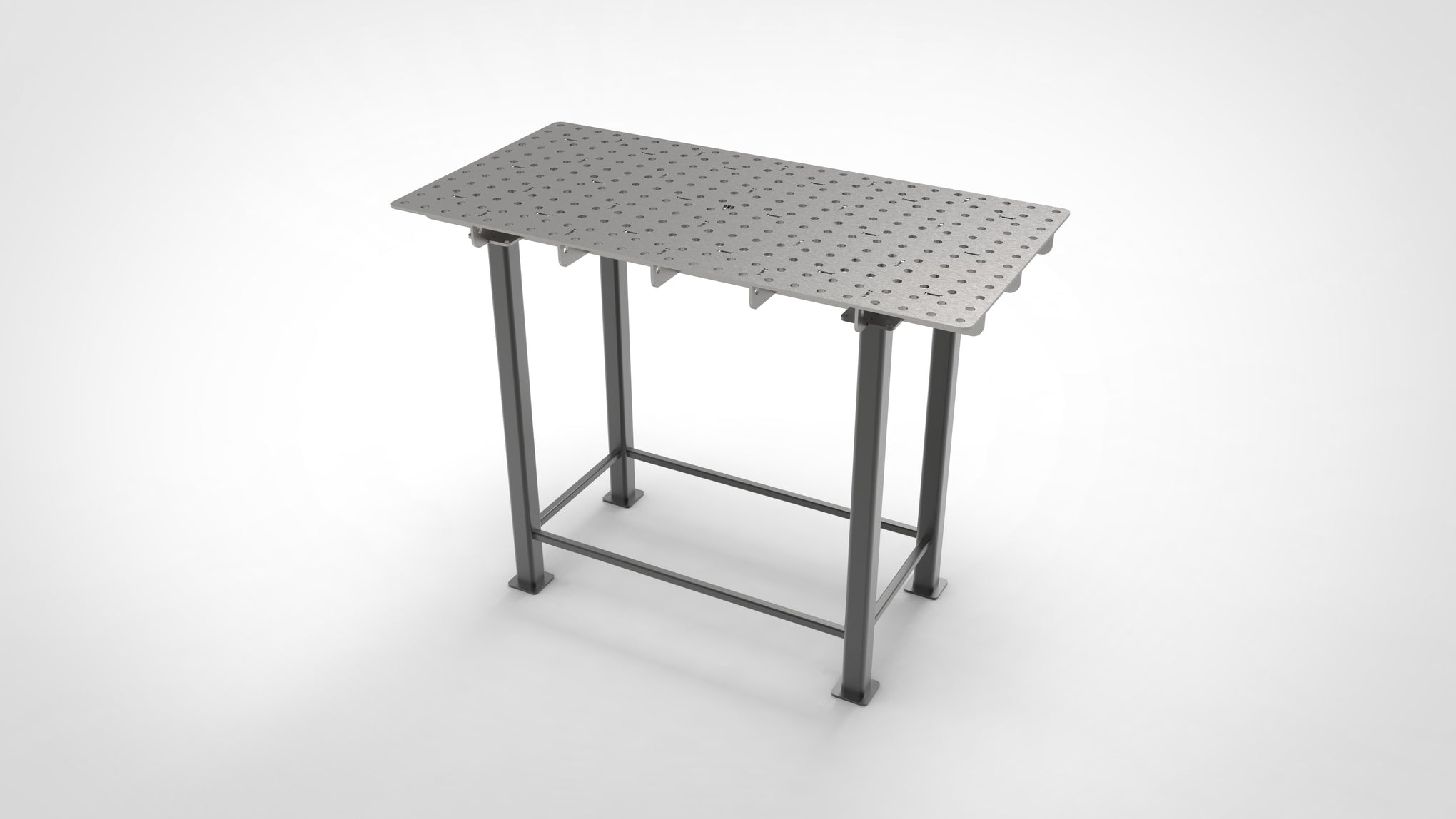

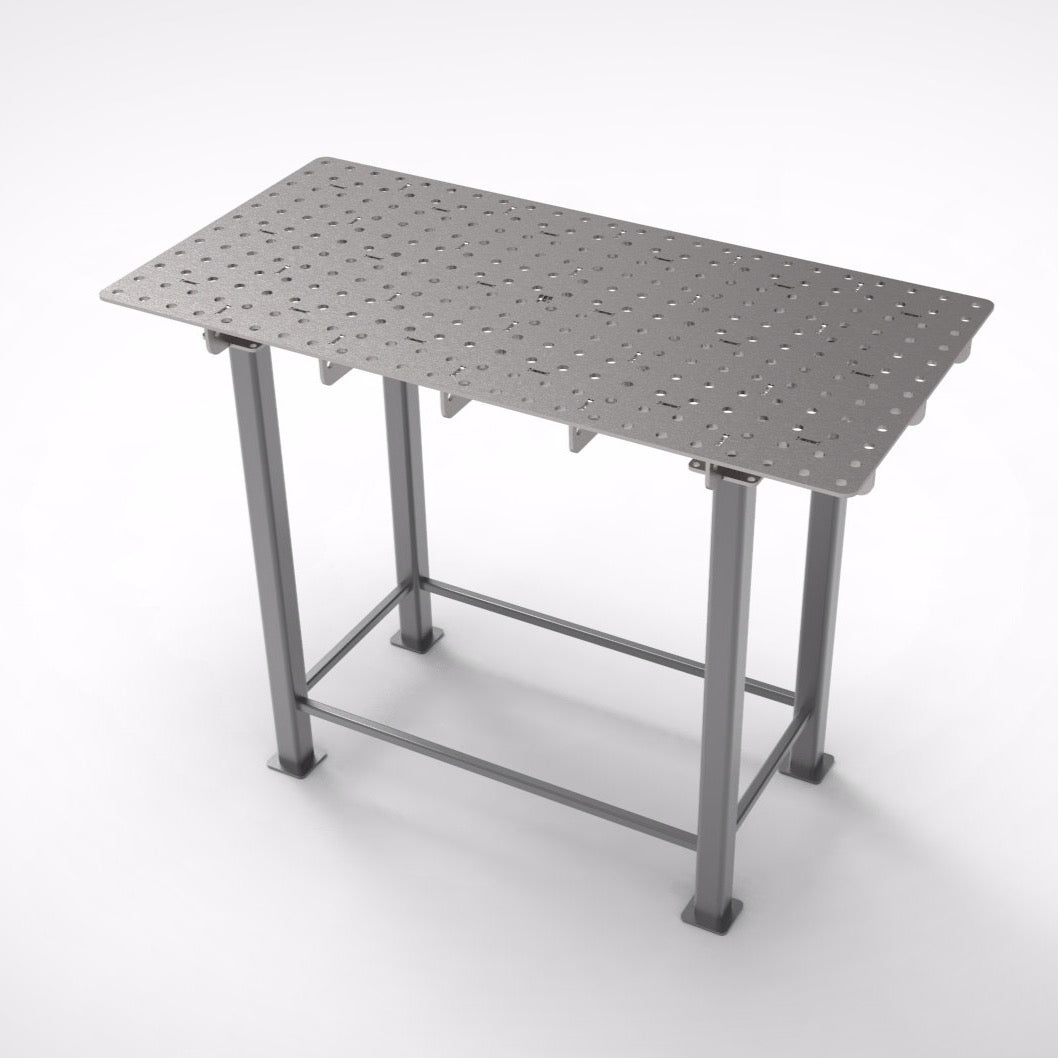

Self-Build + Leg Kit: Delivered flat packed including leg steels (50x50 legs, No Bracing) and mounting plates for yourself to assemble and weld up. (Does not included fixings & Customer to advise top of table height during checkout notes, See our assembly page for more details).
Self-Build + Leg Kit + 700kg 100mm Castors: Delivered flat packed including leg steels (50x50 legs, No Bracing)) mounting plates, Castors for yourself to assemble and weld up. (Does not included fixings & Customer to advise top of table height during checkout notes, See our assembly page for more details).
Ready Made: We will assemble, weld and quality check your item. so soon receiving your table you can get fabricating something awesome!
Ready Made + Leg Kit: As above but we will cut your leg kit to your advised height and weld up your table top. You will receive your table assembled with the leg kit to be weld by yourself. (Customer to advise top of table height during checkout notes)
Ready Made + Leg Kit + 700kg 100mm Castors: As above but we will cut your leg kit to your advised height and weld up your table top. You will receive your table assembled with the leg kit to be weld by yourself and castors to bolt on(Customer to advise top of table height during checkout notes).
Leg Kit Detail : 50x50 legs / No bracing – Mild steel (Customer to advise top of table height during checkout)
Castors Detail: 700kg RED 100mm castors (2no. Braked, 2no. un-braked)
Lead Time: We try to keep a stock off all our tables of all various sizes but depending on sales, workshop load and table requirements lead time can be between 5-14 days. Please get in touch for more accurate ETA.
For all enquiries, please contact info@macindustries.co.uk or use our contact form.
Fibre Laser Cut Fixture Tables Lead Times
We do hold stock of most tables in popular sizes, so weather is a self-build or Ready Made order we can quick progress with your order. Unfortunately there are times were we would have to laser cut your table / made to order due to custom size, logo integration, low stock etc. If you want to give us a call or email to check stock before you order we can advise a more accurate lead times.
- Instock - Self Build Mac Tables - 2>3 Working Days Despatch
- Instock - Ready Made Mac Tables - 5>6 Workings Days Despatch
- Made to Order - Self Build Mac Tables - 7>15 Working Days Despatch
- Made to Order - Ready Made Mac Tables - 15>25 Workings Days Despatch (Depending on workshop load)
Fibre Laser Cut Tooling
We do hold stock of all of our Mac fibre laser cut fixture table tooling (Unless specified in the listing) So weather is a self build or Ready Made order we can quick progress with your order. Unfortunately there are times were we would have to laser cut your tooling / made to order due to custom size, logo integration, low stock etc. We will advise you post order placement if there is a delay on the advised lead times below.
- Instock - Self Build Mac Tables - 1>2 Working Days Despatch
- Instock - Ready Made Mac Tables - 2>3 Workings Days Despatch
- Made to Order - Self Build Mac Tables - 7>8 Working Days Despatch
- Made to Order - Ready Made Mac Tables - 8>10 Workings Days Despatch (Depending on workshop load)
All Other Store Items (Clamps / Castors / Bolts etc.)
Stock items - despatched withing 1 > 4 days on a Next day service.
Tolerances / Material condition
We like to offer extremely tight tolerances for all our tables and tooling but we work with with HR sheet material which is de-coiled in the UK. Prior to us fibre laser cutting. Material has a sheet thickness tolerance of approx +/- 0.35 (depending on material thickness).
Unfortunately we cannot offer any tolerance on any self build tables or tooling. Ready made tables we can offer the following…
Hobby/ MiniPRO +/- 1.5mm
MidiPRO +/- 1mm
PRO +/- 1mm
ULTRA +/- 0.5mm
Alternative MAC Milled tables
If your looking for extremely fine tolerances we also offer milled / nitrated tables starting from 1x1m to 4x2m where we can offer down to +/- 0.15mm
We do and can delivery worldwide but our website is only setup to automatically calculate delivery (Parcels and Pallets) to UK, Northern Ireland and Ireland. If you would like delivery elsewhere please get in touch for a quotation. 0330 1333 868
A lot of our items are rather heavy and will most likely be send on a pallet. The service required for your order will be worked our during checkout depending on the weight of the complete order. Smaller order and items will be sent using a next day service.
As standard the pallet service will be on a ECO Book in Service, therefore the haulage company will contact direct to ensure you are at the delivery address to accept. Delivery failures and redelivery charges will be cover by the customer.
If your order is 1.8m long and under this can be unloaded by the tail lift other wise you will be required to have suitable means to unload at the delivery address.
(NOTE: MAX WIDTH TABLES 1.8M FOR TABLE LIFT DELVIERY)
Please note this a kerb side service and will be up to the driver if they can locate the pallet elsewhere other than the kerb.
Please Note Ready Made tables under 150kg (Hobby / MiniPRO) can be sent with or without the table legs fitted. When fitted the table will be delivered upside down.
Please Note tables over 150kg (MidiPRO and above) will not be sent with the frame, legs attached, due to the safety concerns during transport.
