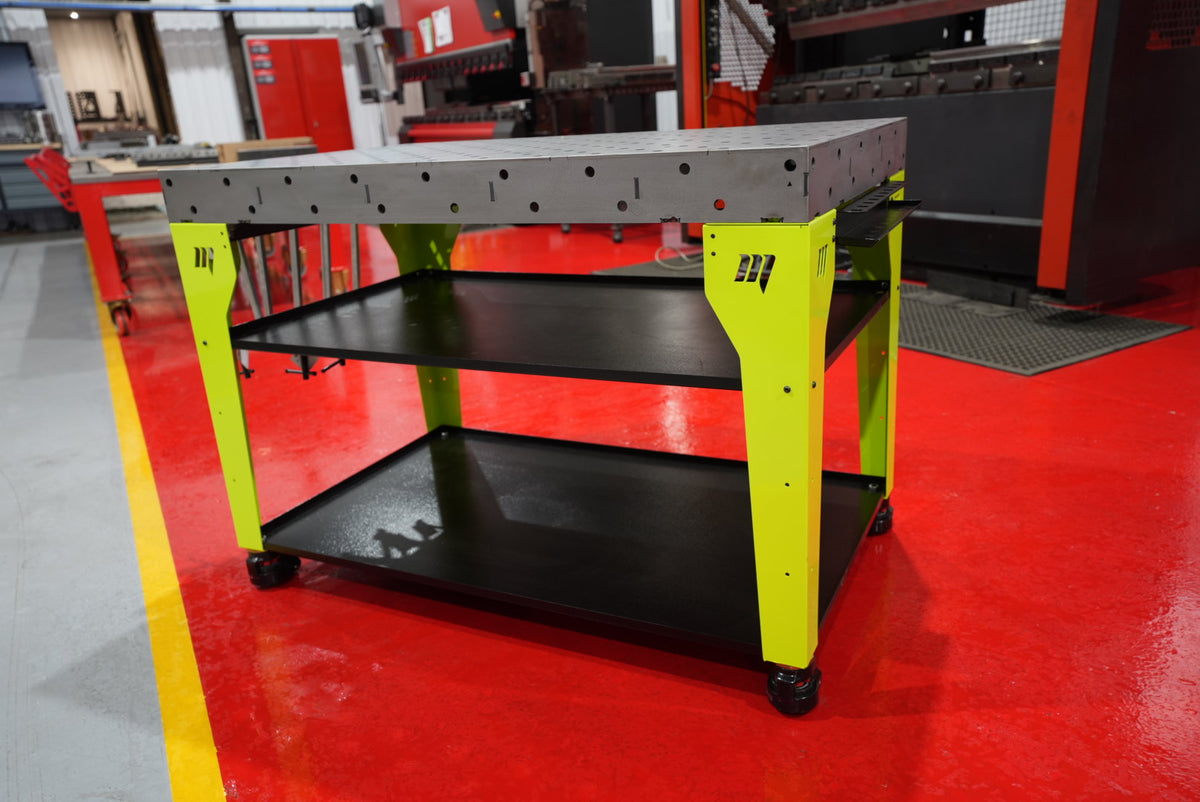

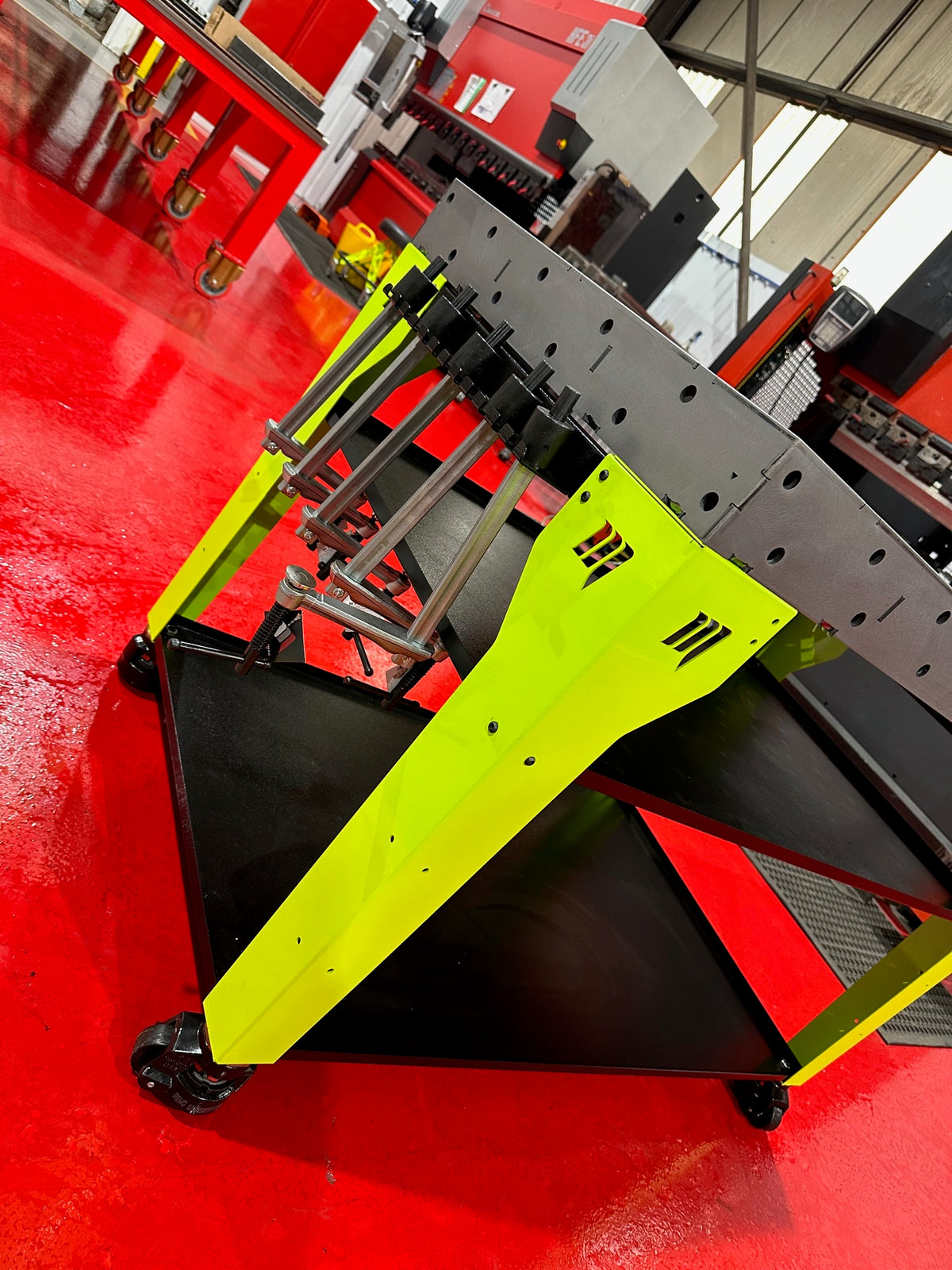

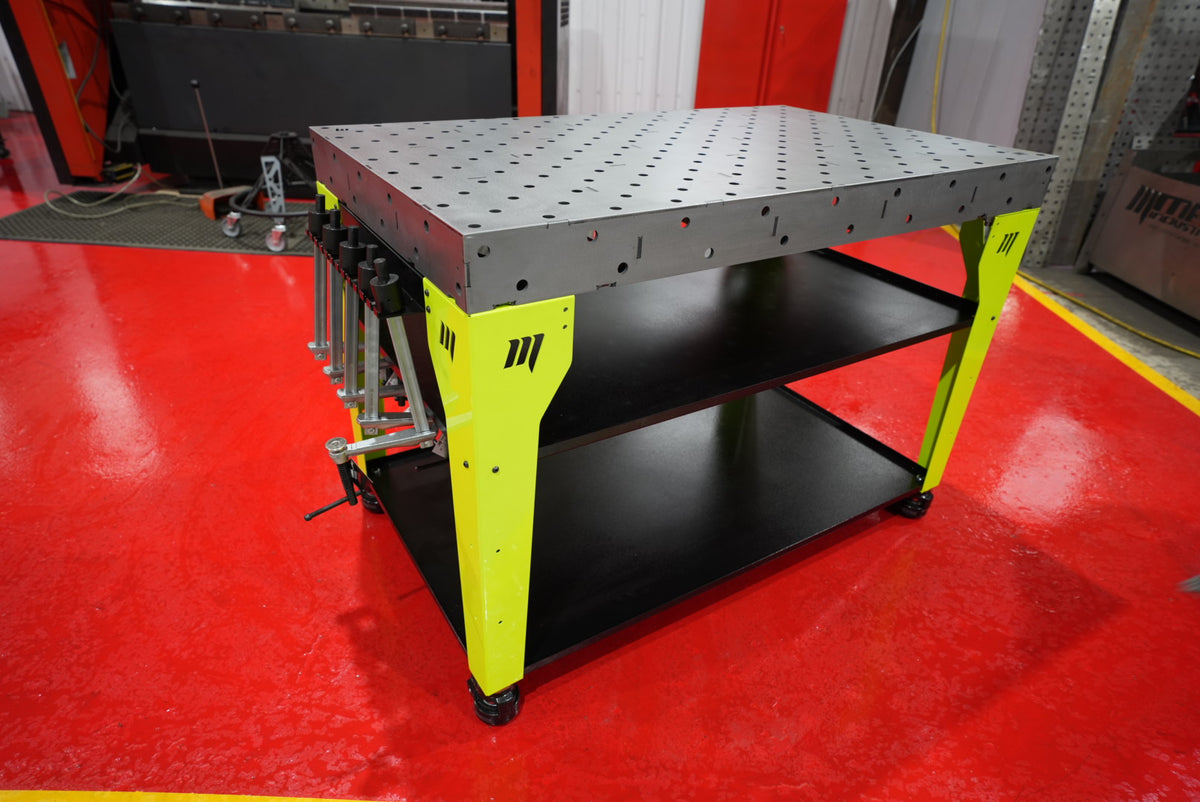

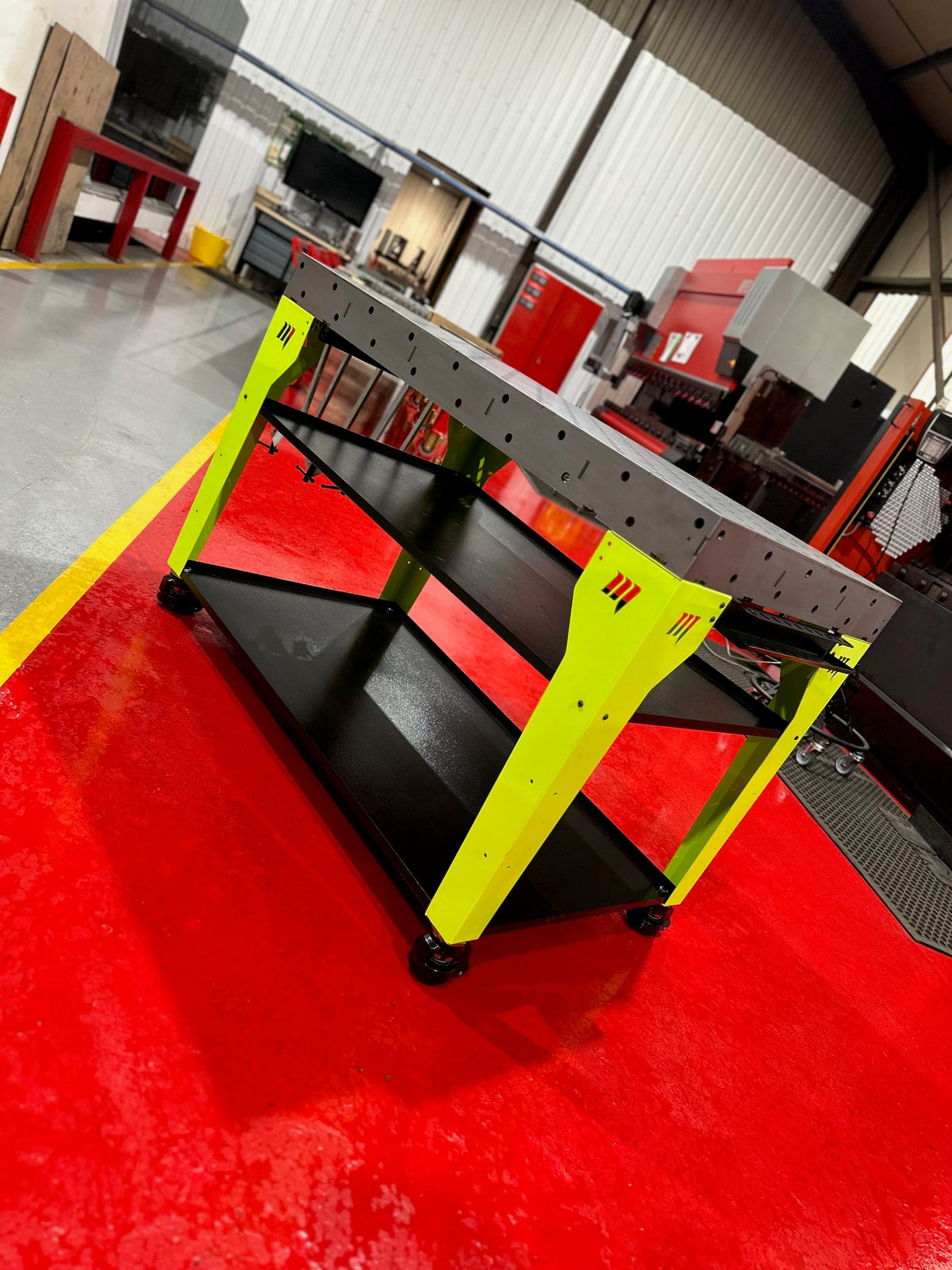

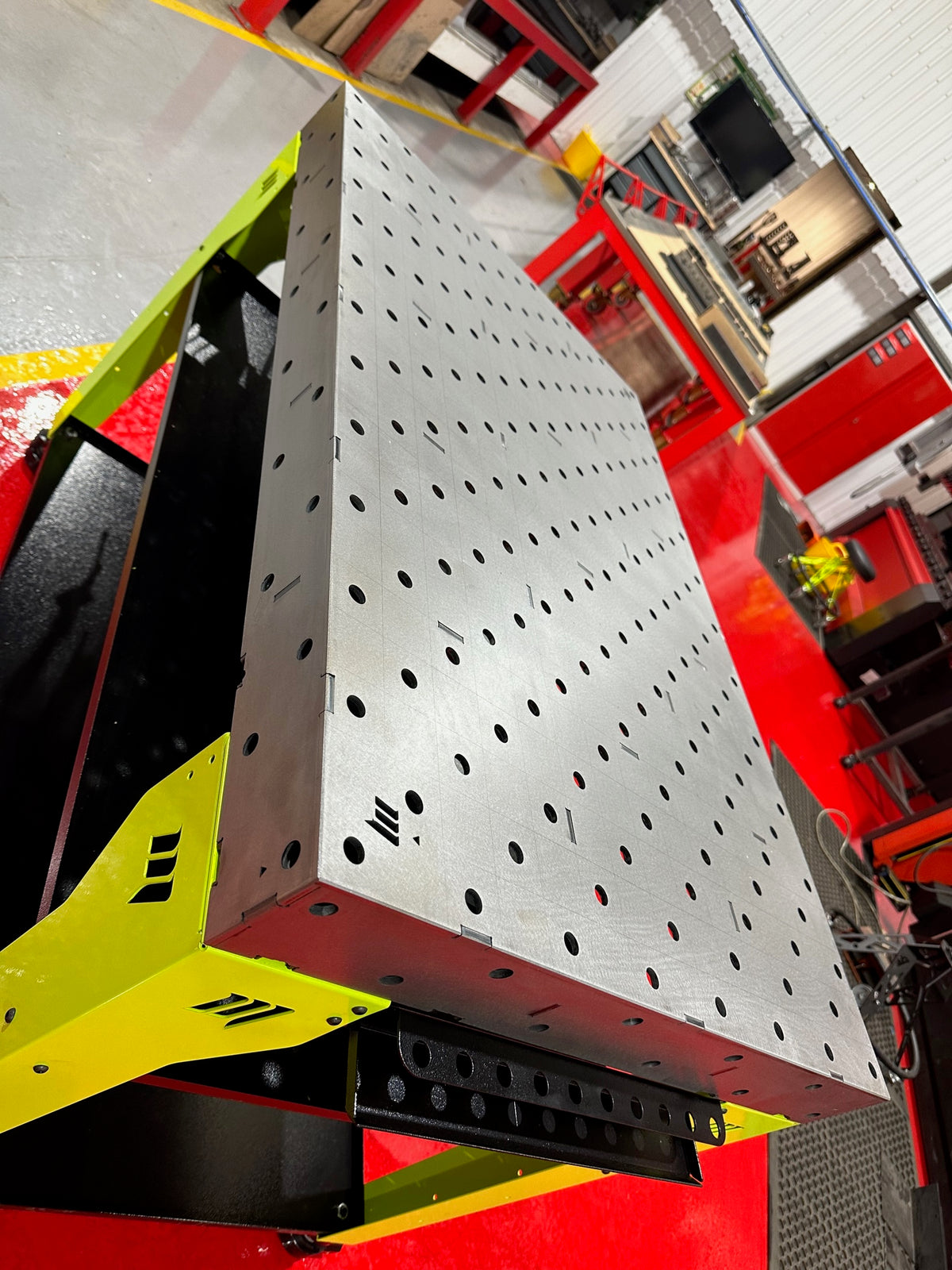

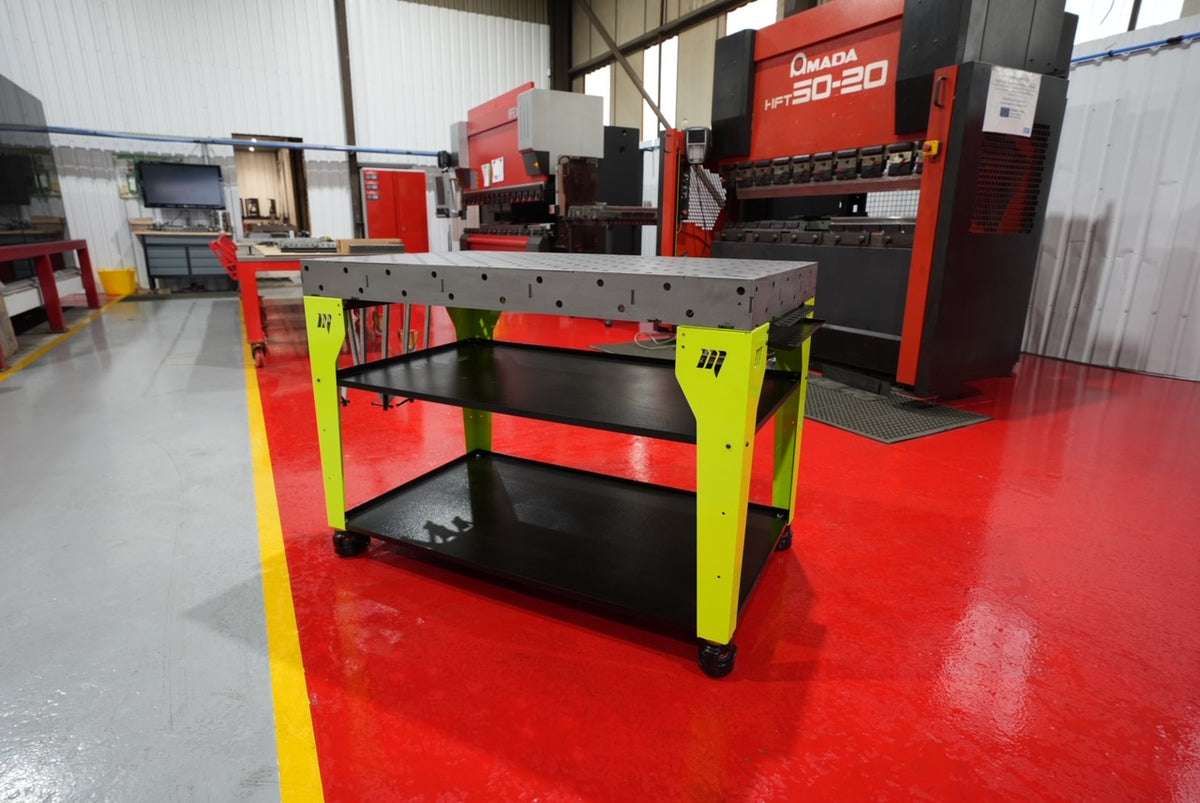

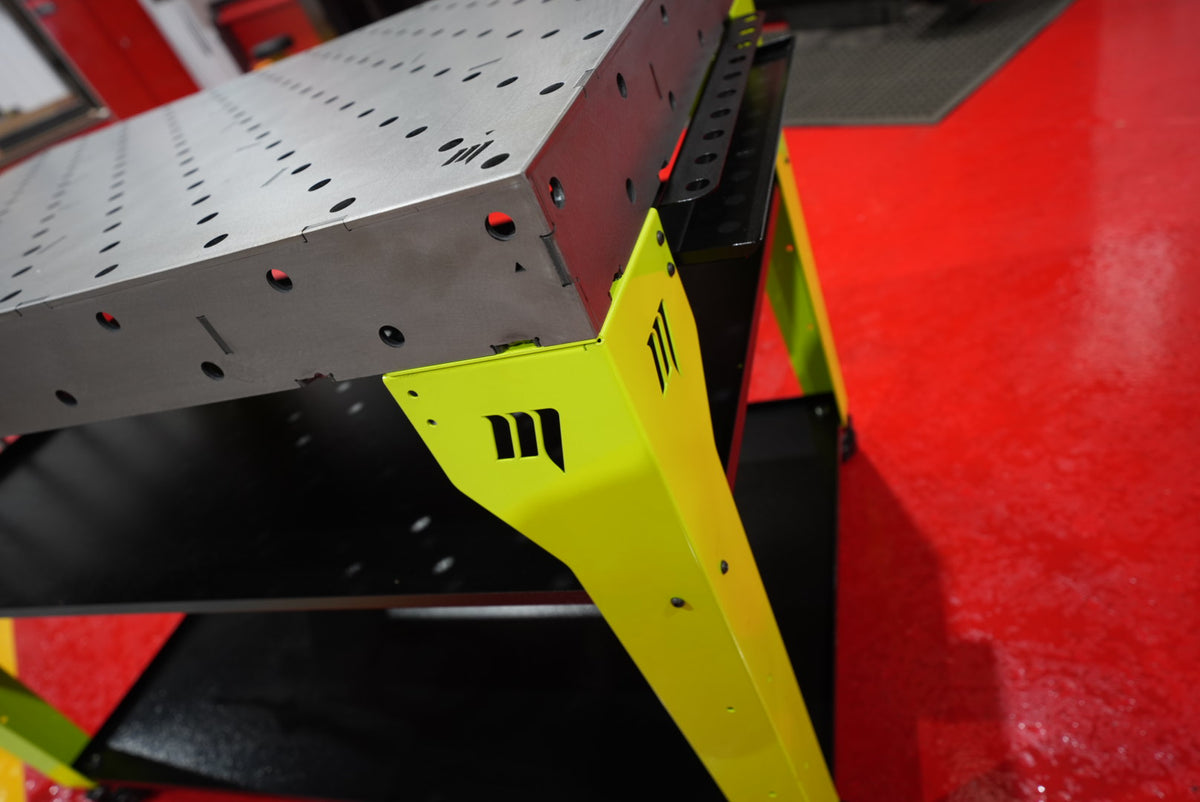

MidiPRO Plus - Fixture Welding Weld Trolley Set

New MidiPRO PRO 1250x750 Fixture Weld Trolley 16D 100mm Centres

4x Strong Folded Constructed Powdercoated Legs

2x Shelves Powdercoated textured black

4x FM type Castors

Safe Working Load of 450kg

All Fixtures and fittings supplied and legs will require assembly by yourself.

Build option is only for the Fixture Table top.

Overall Height 900mm inc castors

-----------------------------------------------------

This is really a PRO table just with a smaller side skirt. Just as true and strong as the PRO but with 100mm side skirts and rib sub-frame and has the option of being extended. Various colours available and lighter on the wallet.

Unlike other imports and cheap constructions we design superior sub-frame cross bracing as this is the most critical part of the table to ensure a truly flat and accurate fabrication table. We design, test and manufacture everything in house, in the UK to maintain a high quality of control.

All of our tables and tool include the industry standard 16mm hole pattern (50mm hole centres) to work with all industry fixture 16D tooling.

We only use Hot Rolled, Pickled and Oiled S275 structural mild steel. What this means is just after the production the sheet steel is run through an acid bath (Pickling) to remove any impurities, rust and mill scale from the surfaces of the steel. This leaves the sheet raw and unprotected so a light covering of oil is used to protect it. Using HRPO is nicer for our fibre laser cutter as the laser doesn’t need to cut through mill scale and impurities which can and eventually affect the accuracy of the laser cutter therefore using HPRO Steel gives you precision cut parts which in our opinion they looks more awesome than the dreaded mill scale.

Mac Industries MidiPRO Table Key Features:

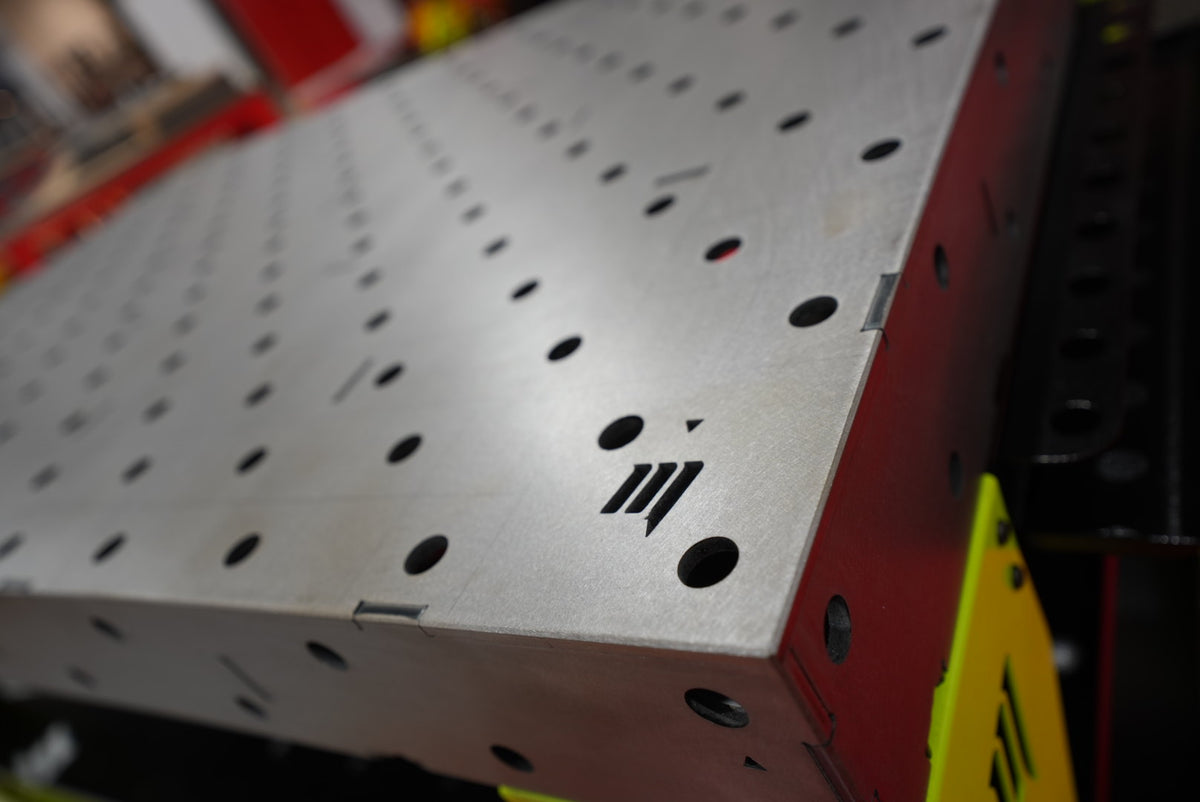

• All Mac Industries “MidiPRO” Fixture Welding tables come with a 100mm fixture skirt/sides with 16mm holes at 100mm centres. (2x holes deep)
• Engineered in house with our Mac waved key and slots interlock.
• 16mm securing hole 100mm apart on centres to work with all 16mm tooling and tables.
• Super strong Interlocking sub-frame every 4/5 holes spacing.
• ALL parts from 6mm thick S275 HRPO structural grade mild steel.
• We are very proud to guarantee a tolerance of +/- 0.1mm of all our laser cutting.
• 16mm holes on 100mm centres work with industry standard 16mm & 5/8" tools. Optional threaded holes and other sizes available.
• Using our large range of welding table tooling, squares, stops, blocks and more, you can adapt the size and shape of your welding fixture table to suit your fabrication needs.
• Foot Master Type Leveling Castor feet.
• Designed and manufactured in the UK.

MidiPRO Build Options

Self-Build + Leg Kit + Castors: Delivered flat packed including leg steels (70x70 legs, NO  bracing supplied) mounting plates, Castors for yourself to assemble and weld up. (Does not included fixings & Customer to advise top of table height, (see our assembly page for more info)

 Ready Made + Leg Kit + Castors: As above but we will all cut, assemble and weld your leg kit. You will receive your table weld up but the legs will require bolting and castors fitted (Customer to advise top of table height).

Castors: 1000kg Foot Master Type Leveling Castors

Lead Time: We try to keep a stock off all our tables of all various sizes but depending on sales, workshop load and table requirements lead time can be between 5-14 days. Please get in touch for more accurate ETA.
